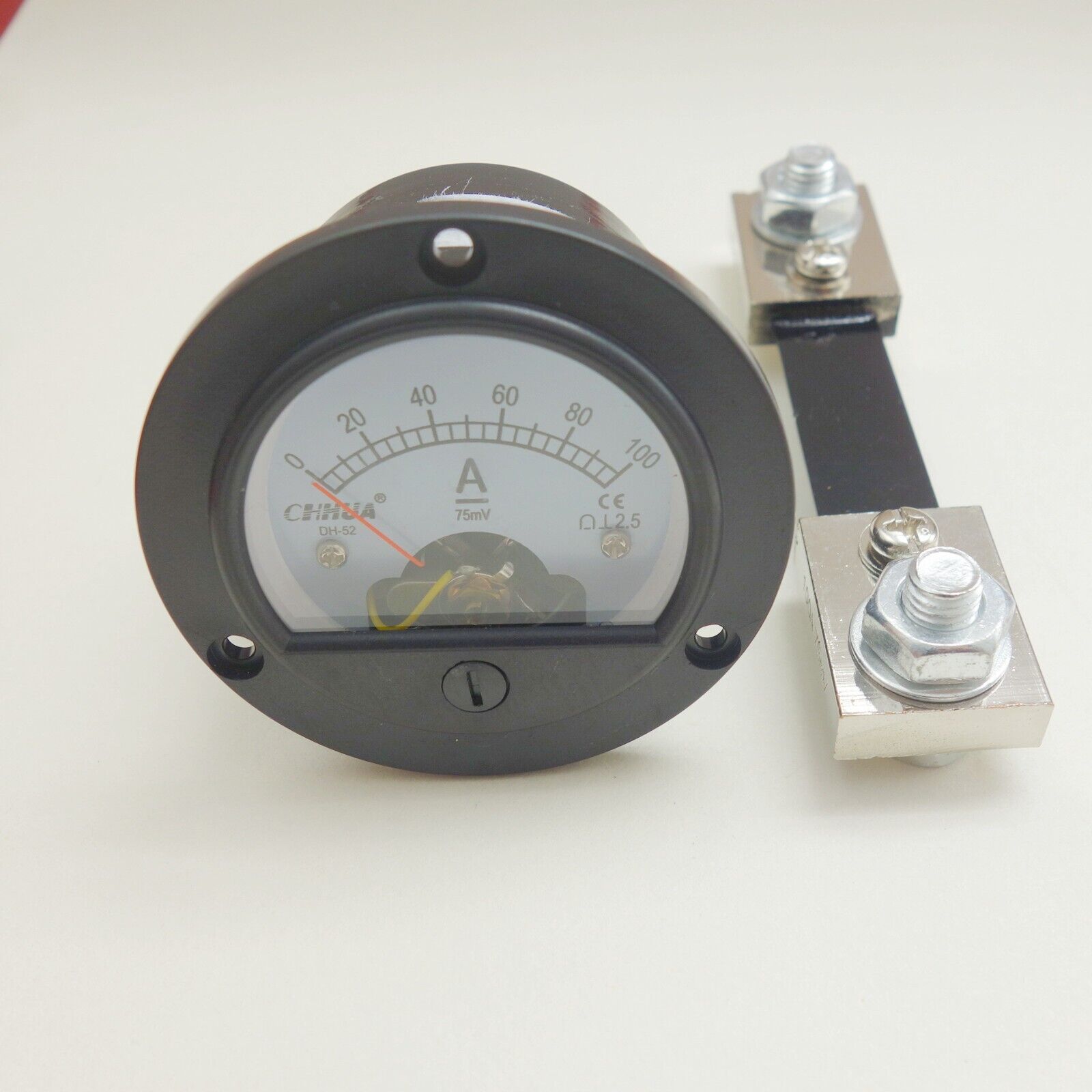

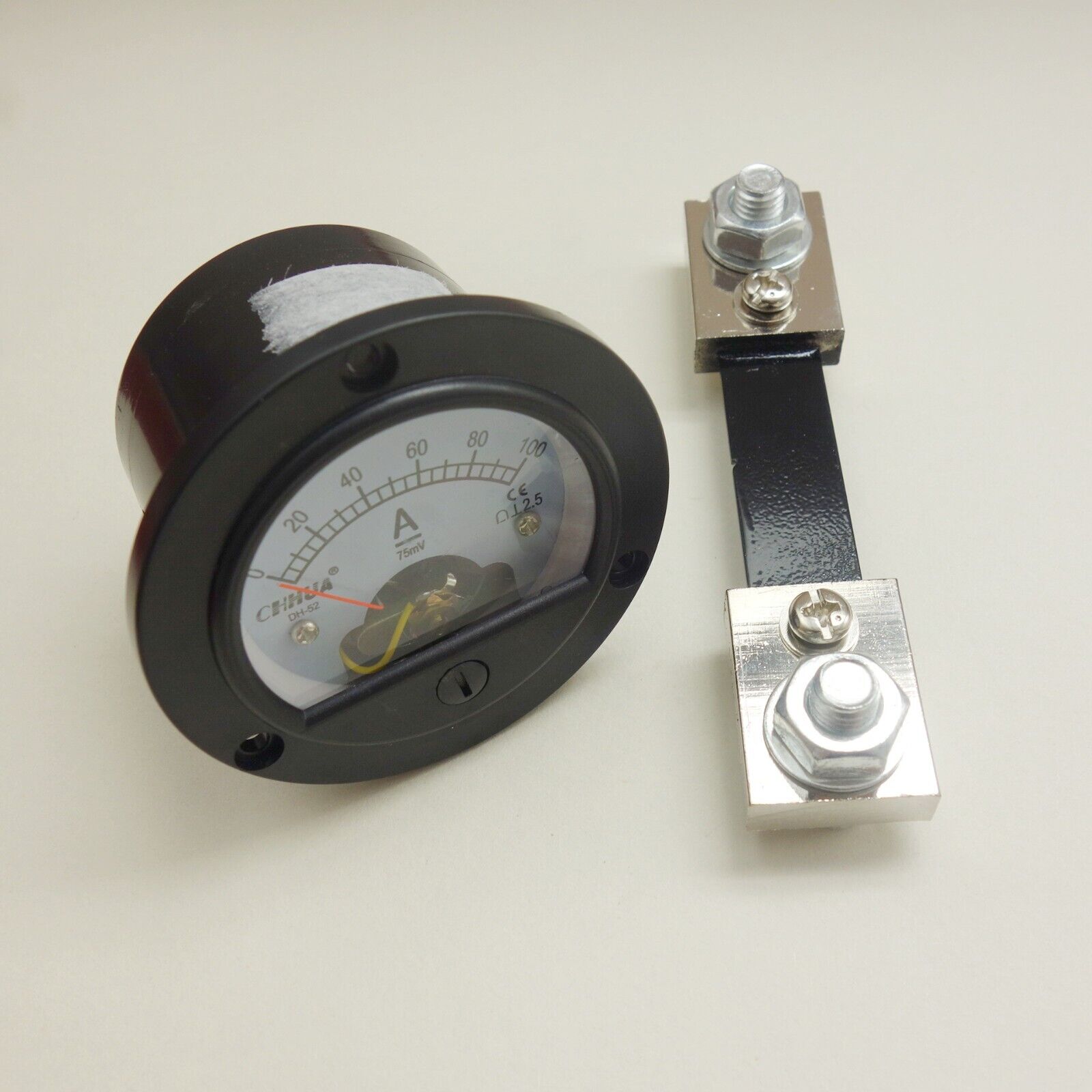

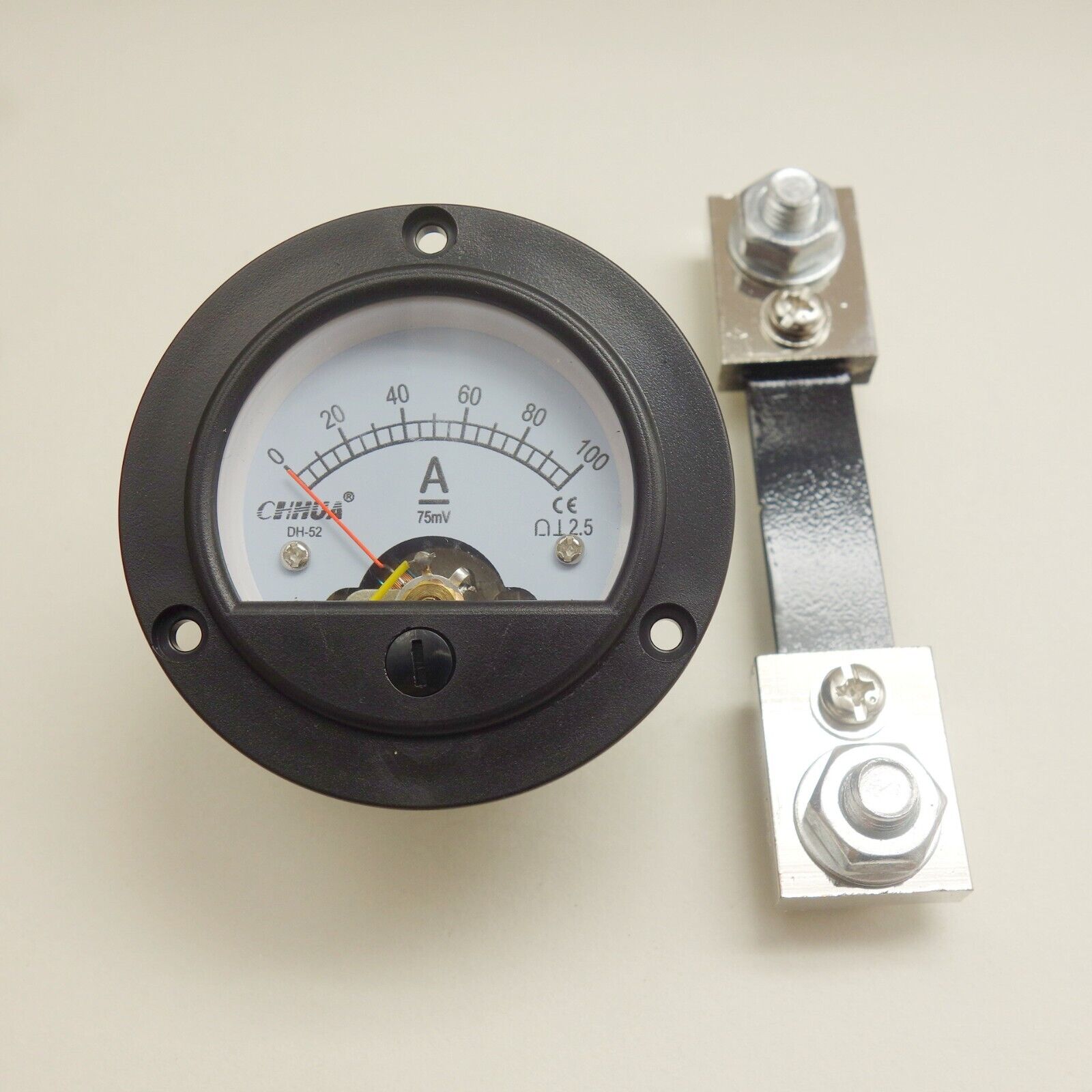

DC 0-100A Round Analog Ammeter Panel Current Meter Dia. 66.4mm DH52 with shunt

DC 0-100A Round Analog Ammeter Panel Current Meter Dia. 66.4mm DH52 with shunt

$13.28 USD
$13.28 USD
促销 售罄



1PC  NEW





 Analog Ammeter




Panel DC  AMP







DC 0-100A





WITH SHUNT

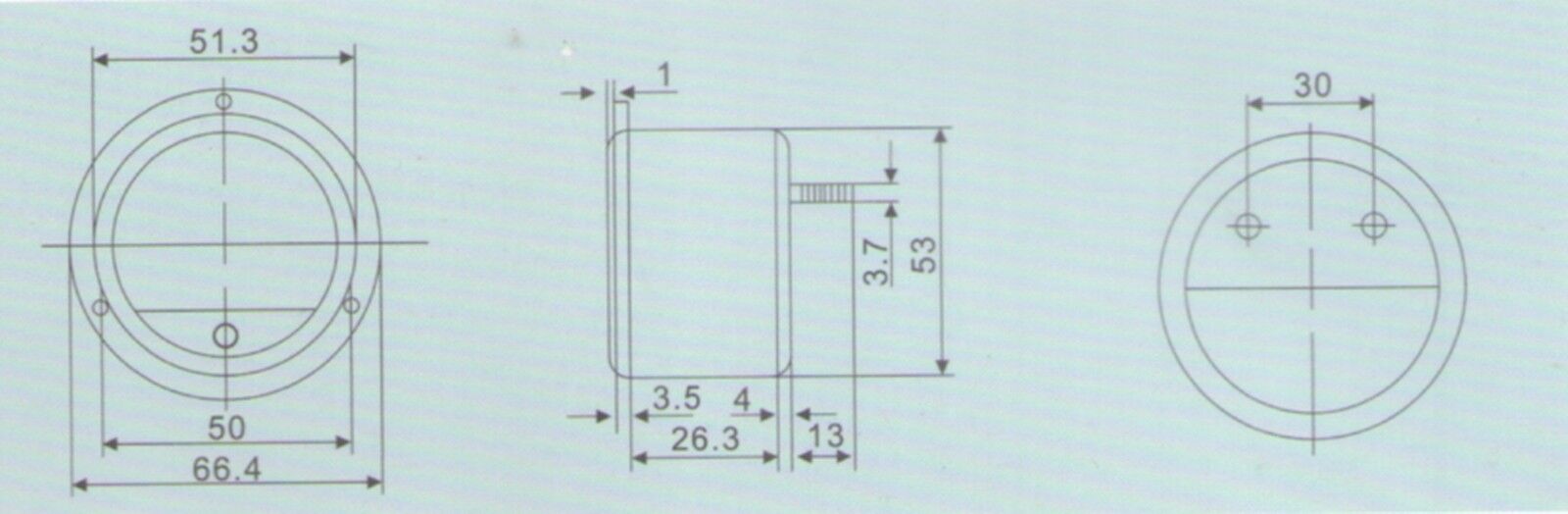

Panel Face Max. Diameter:66.4mm(2.61")



Panel Cutout hole Diameter:53mm(2.09")







Measuring Range:DC 0-100A
Accuracy :Class 2.5
withstand voltage:2000V for 1 minute
Damping response time: less than 4S
Operating Temperature: -10 - +55℃




Please note: Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer’s responsibility.
