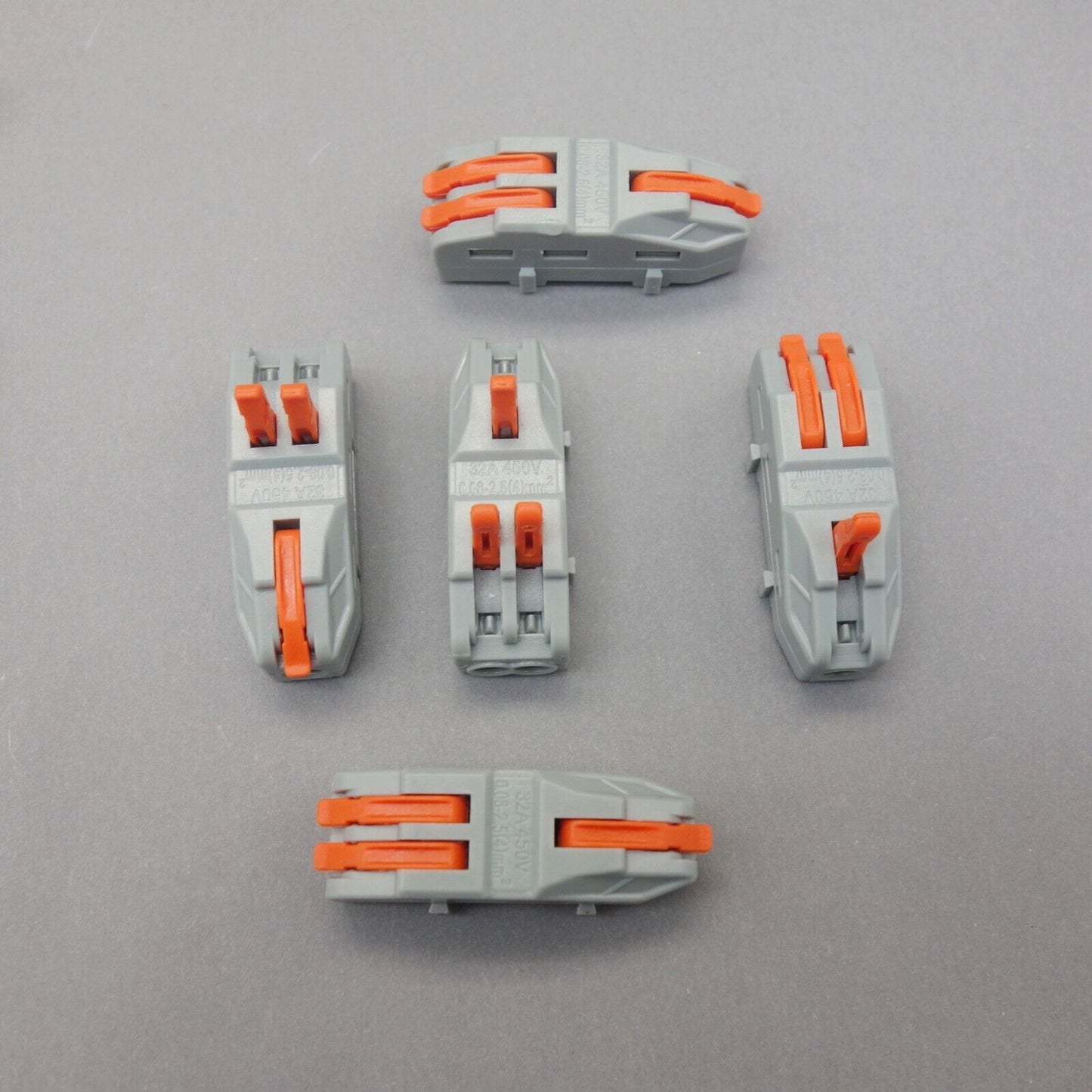

5PCS CMK Terminal block quick connector 1 way to 2/3/4ways 2ways to 4/6/8 ways

5PCS CMK Terminal block quick connector 1 way to 2/3/4ways 2ways to 4/6/8 ways

$3.08 USD
$3.08 USD
促销 售罄
        5PCS   NEW


CMK PUSH IN QUICK CONNECTOR





Connection Wire Flexible wire: 0.08-2.5mm2


Rigid wire:0.2-4mm2

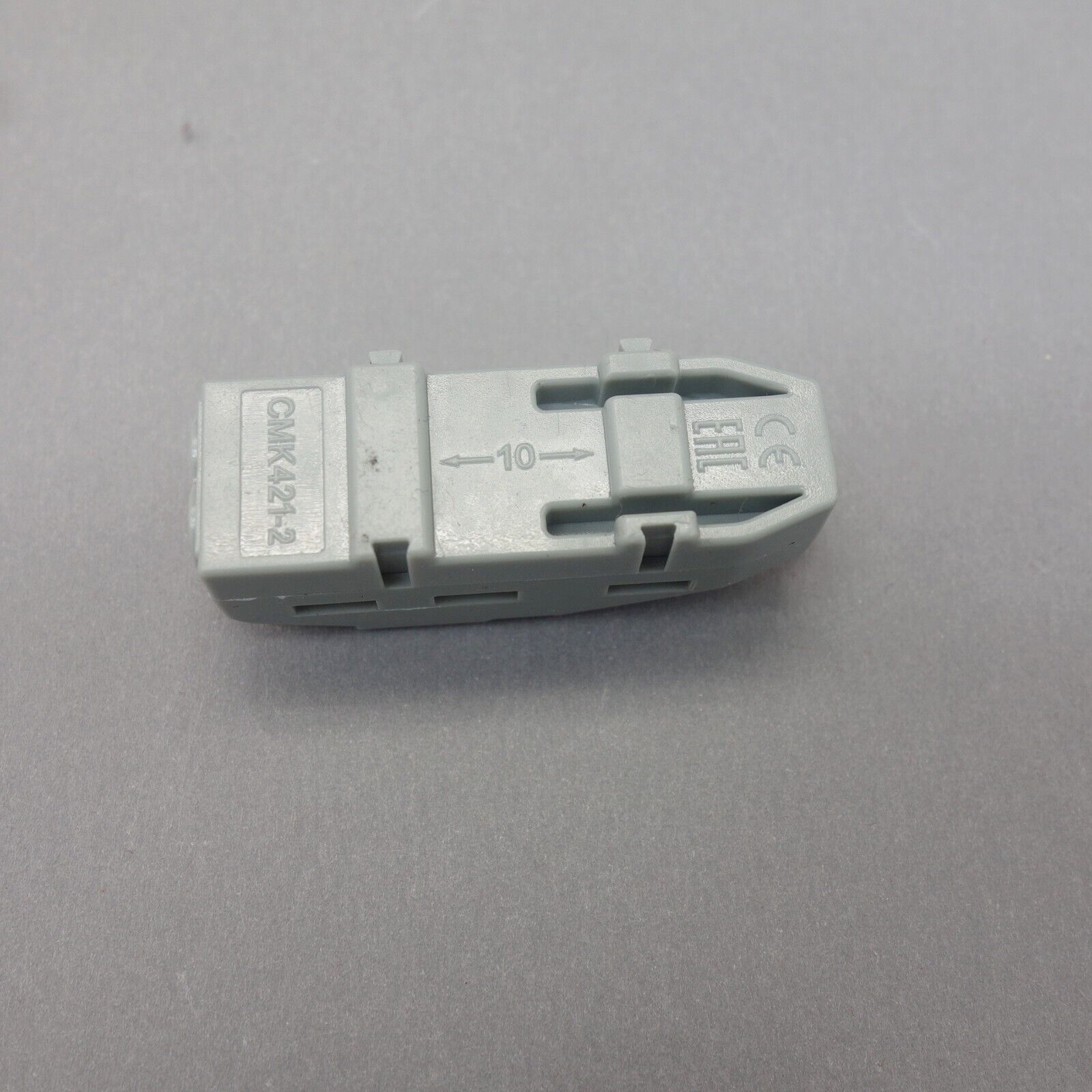

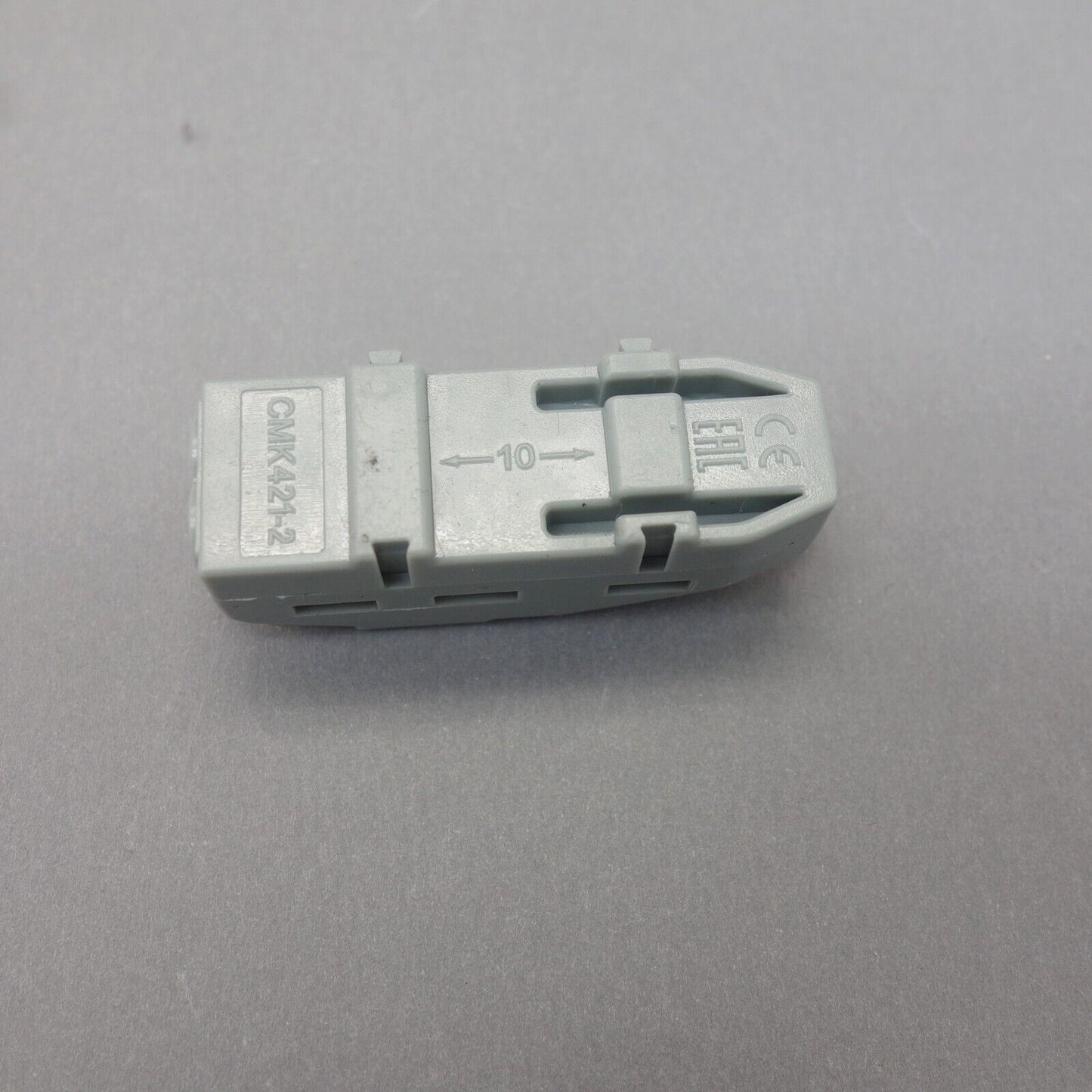

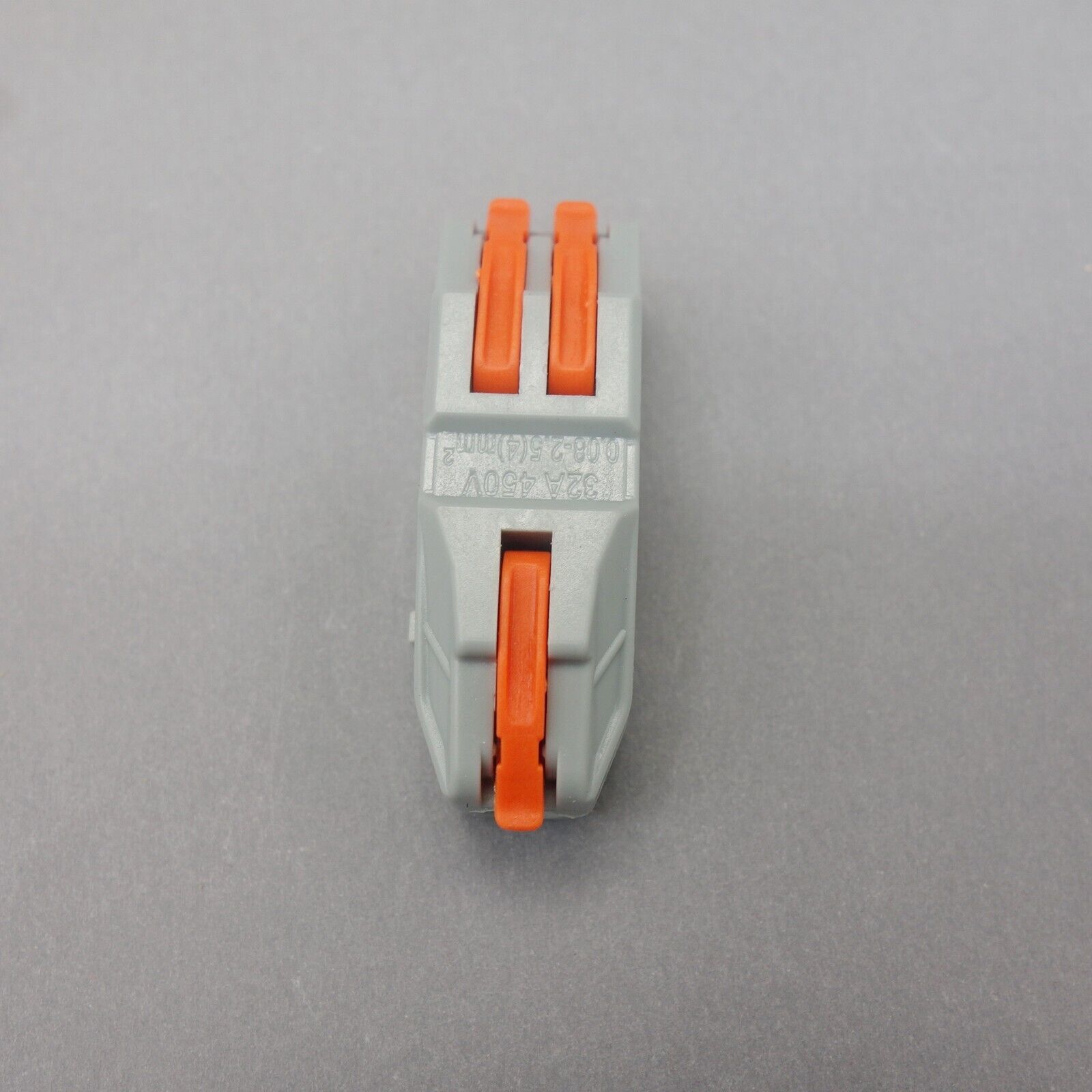

CMK-421-2 ONE TO TWO WAYS

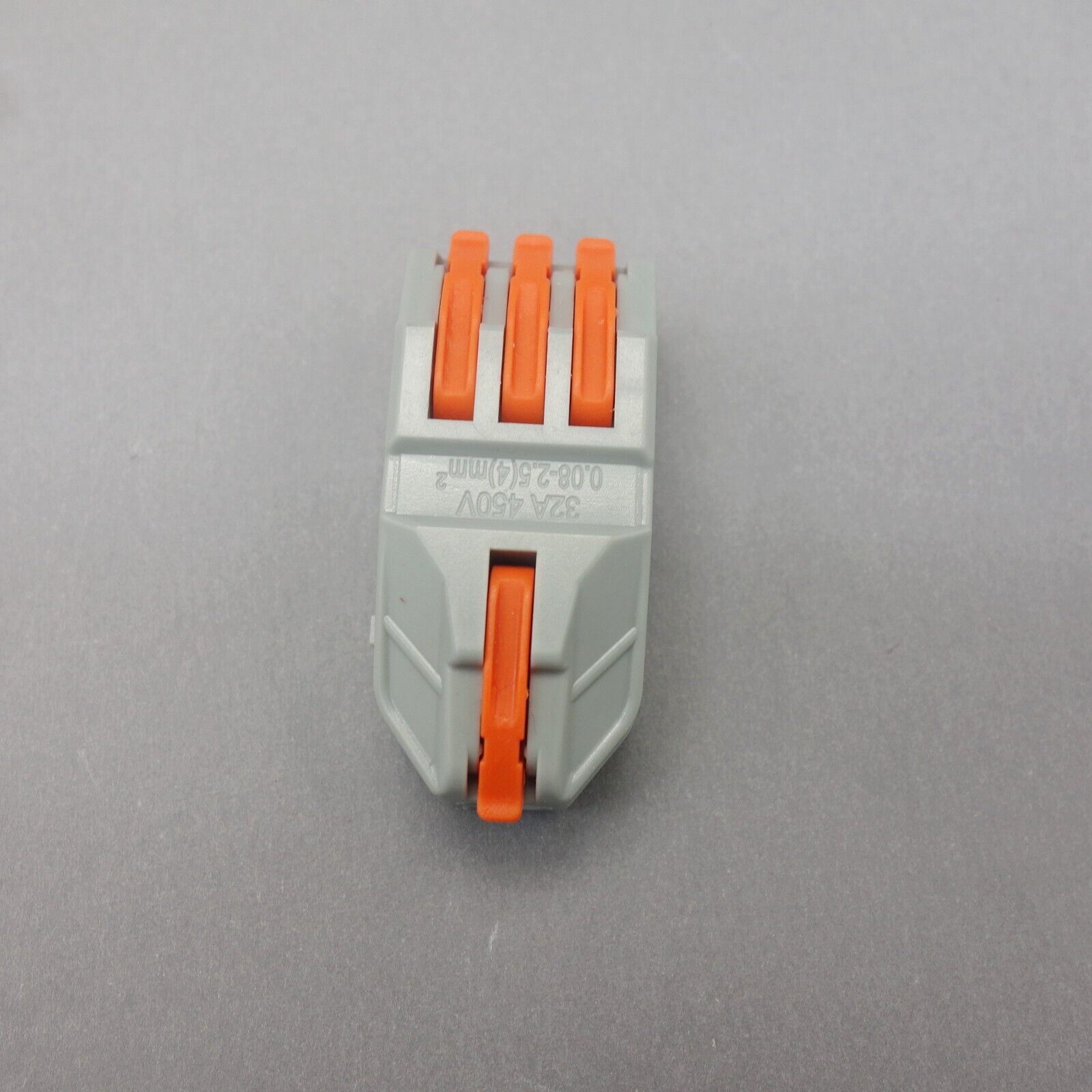

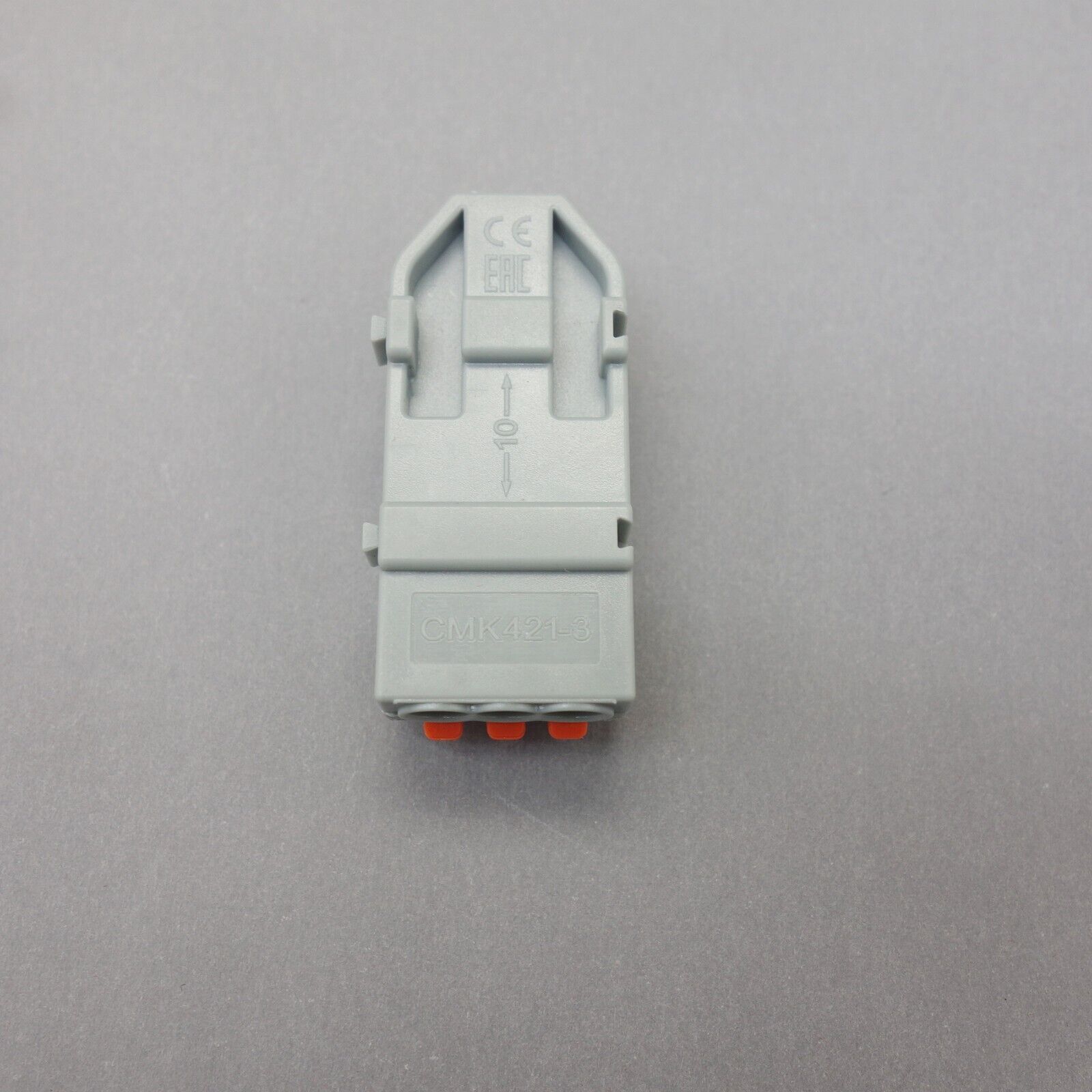

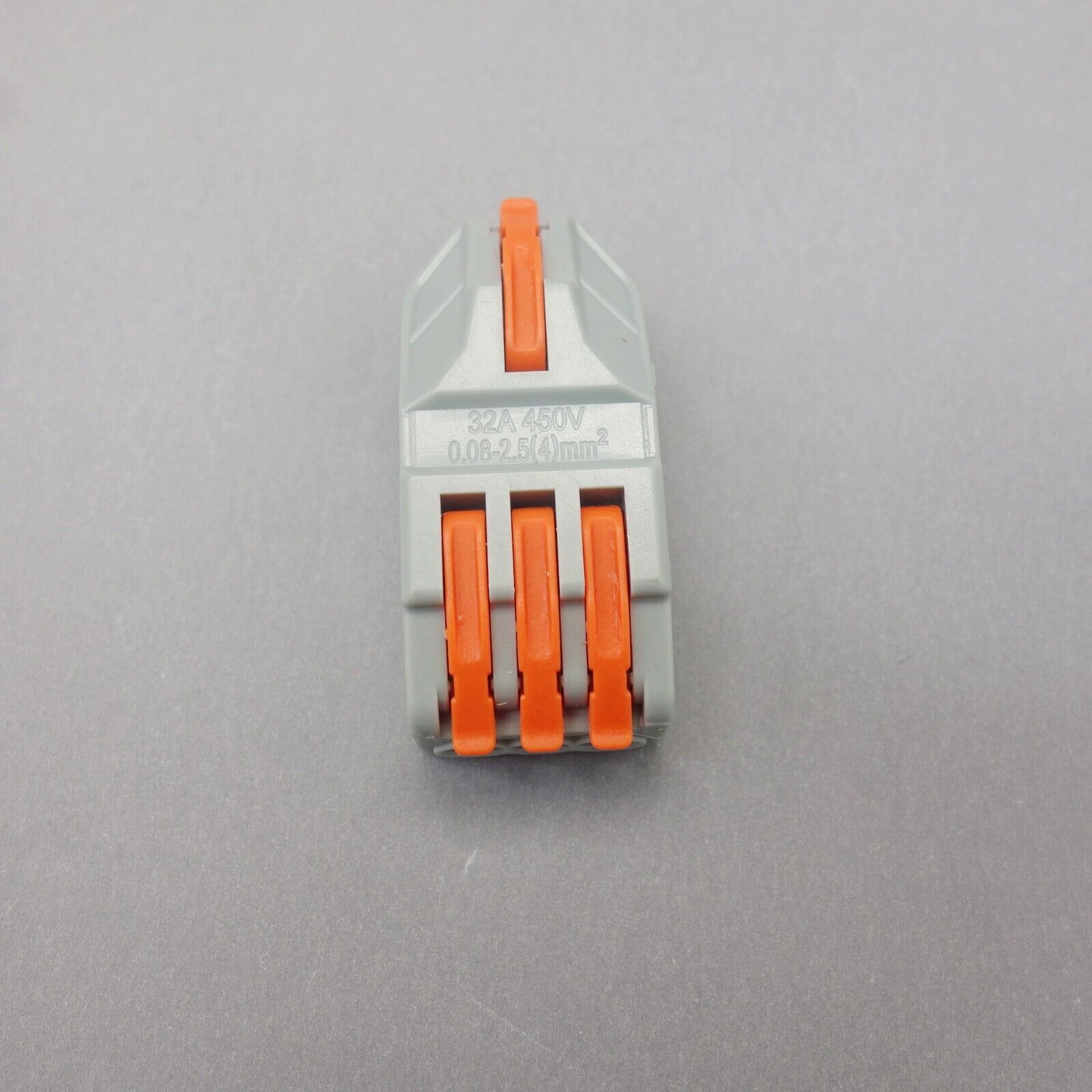

CMK-421-3 ONE TO THREE WAYS
CMK-421-4 ONE TO FOUR WAYS

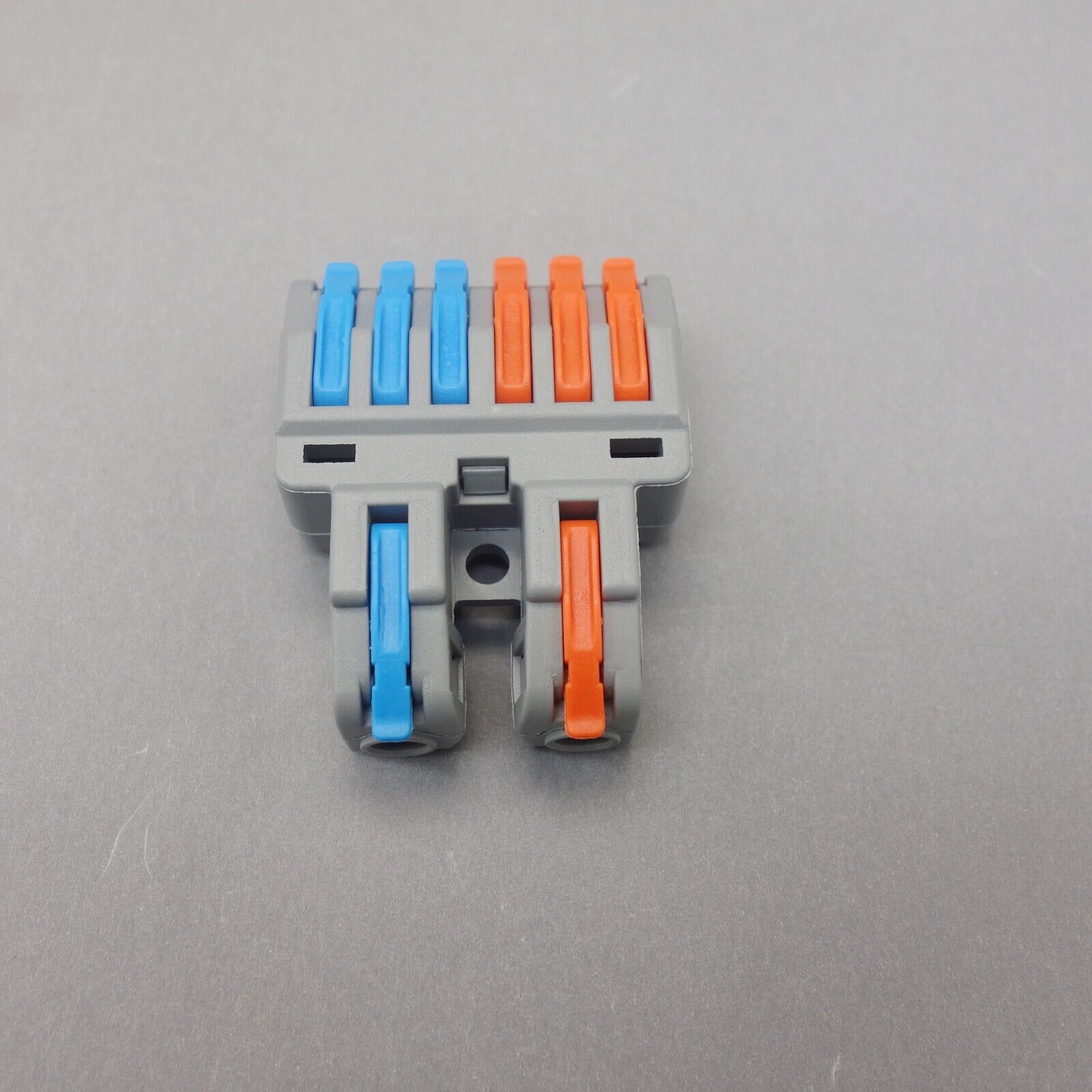

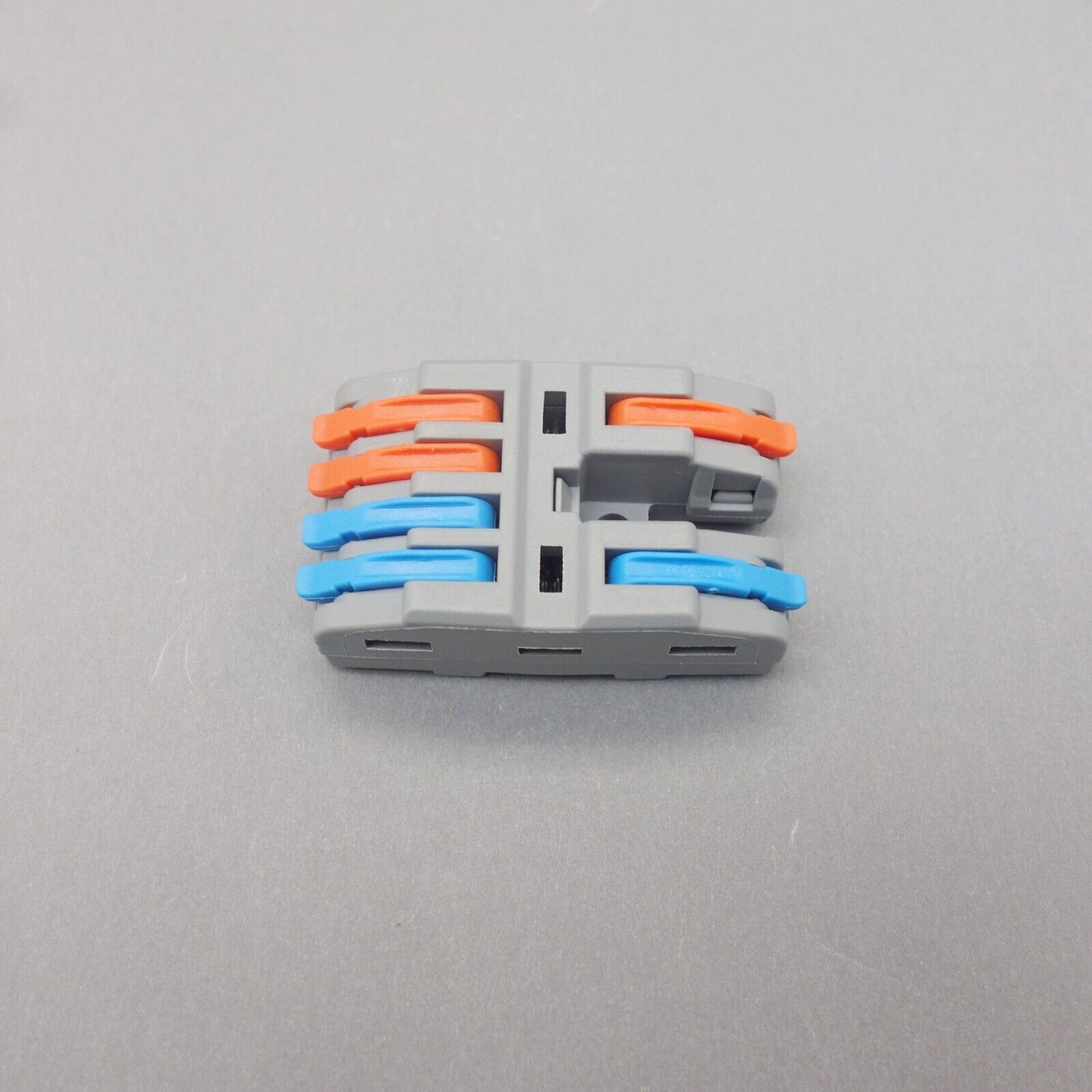

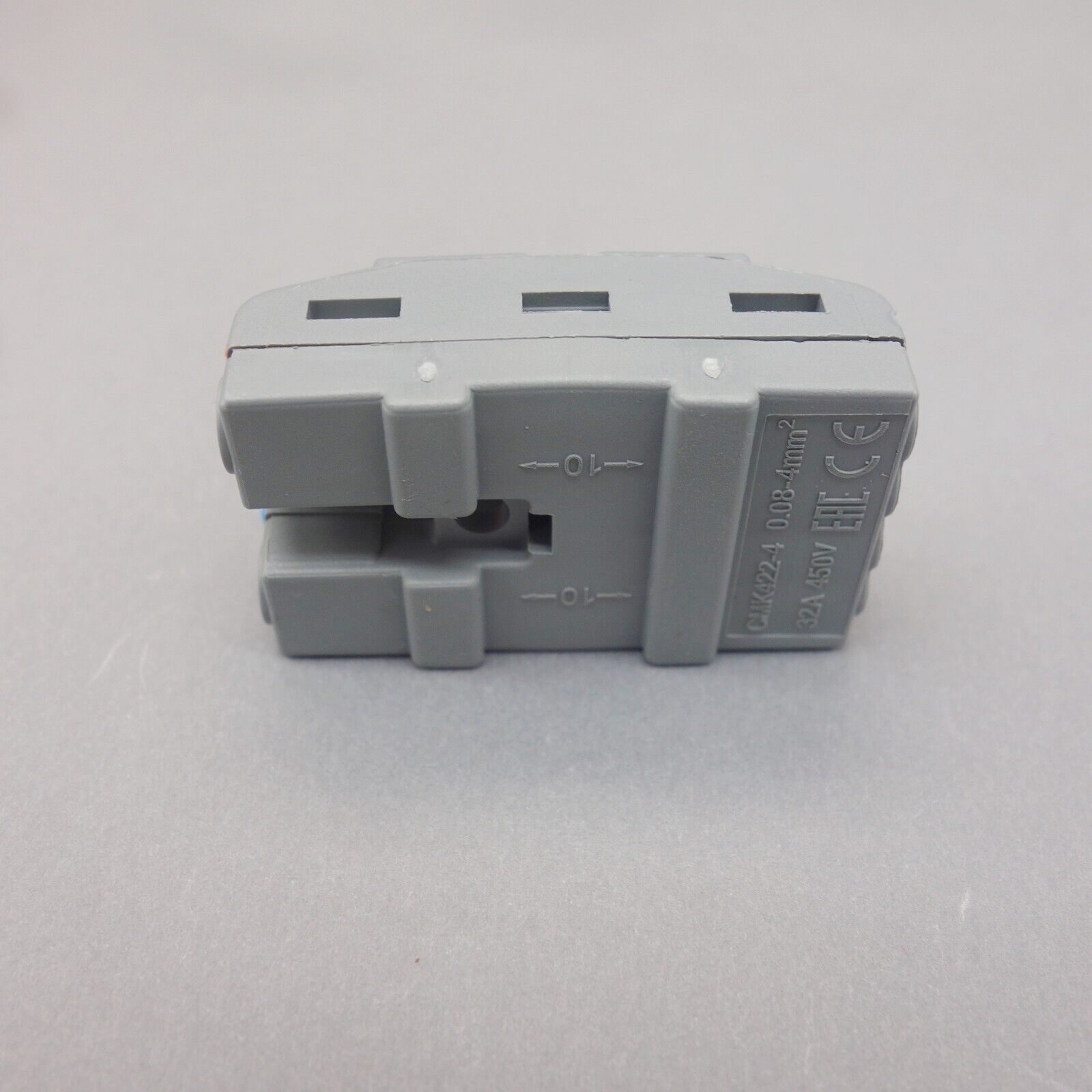

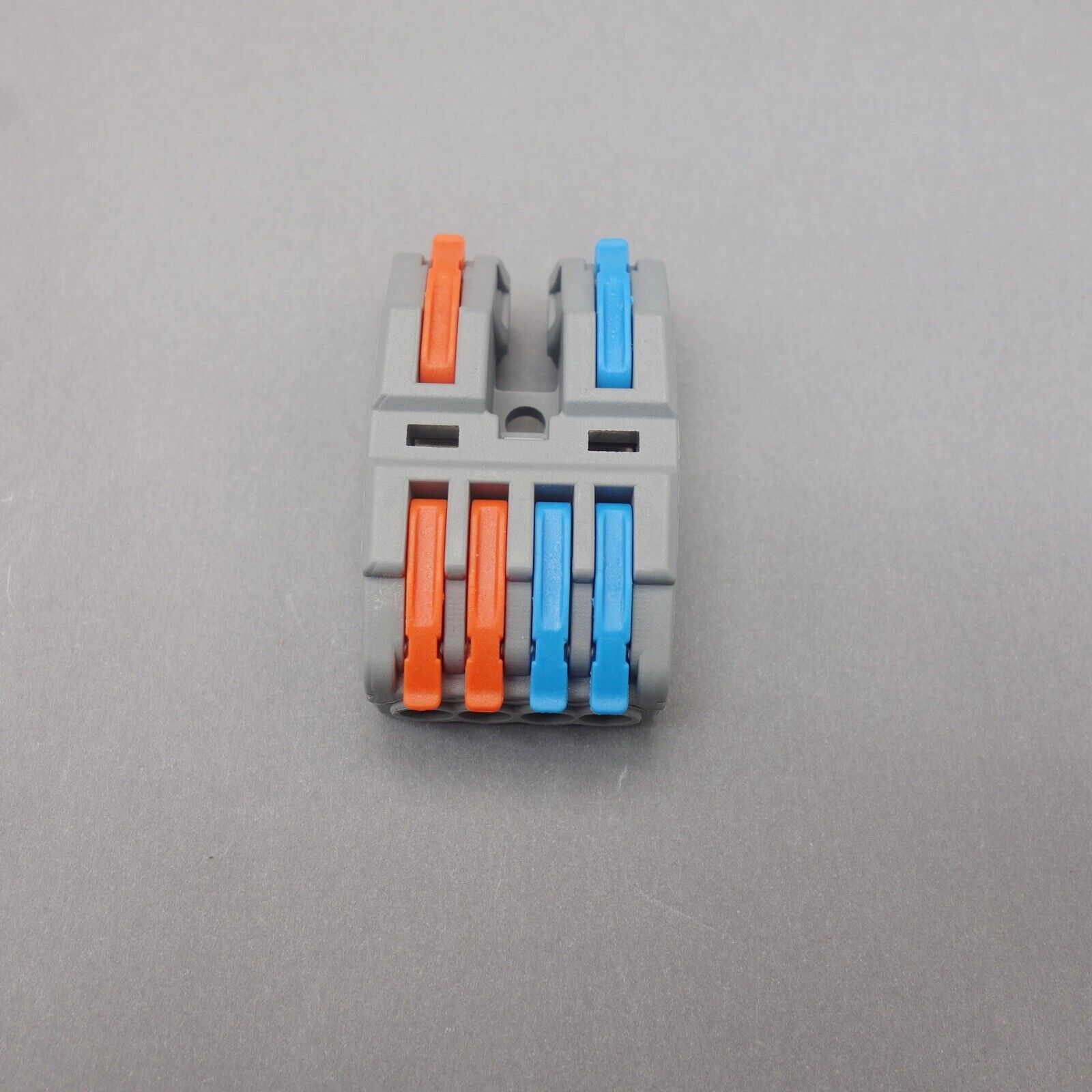

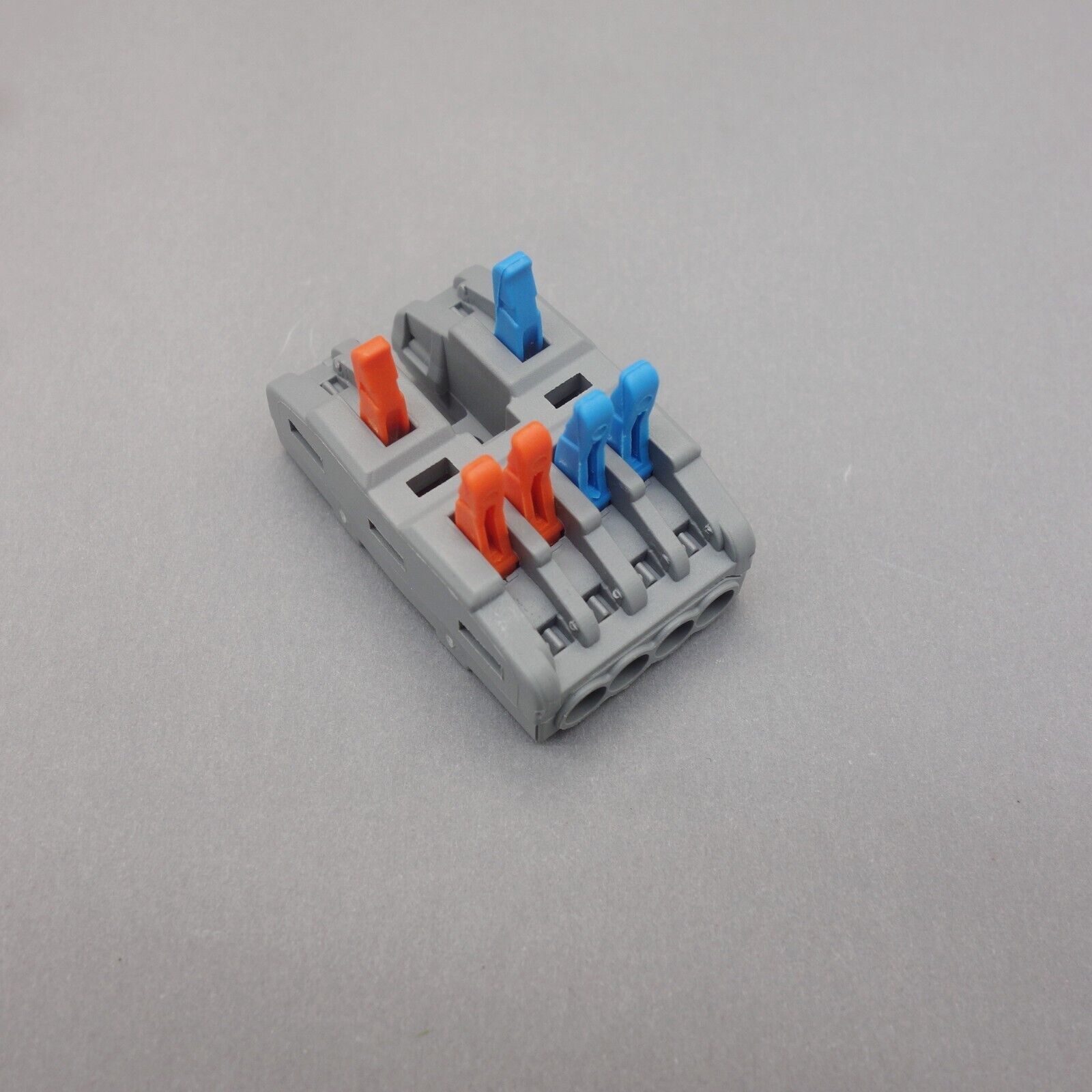

CMK-422-4 TWO TO FOUR WAYS

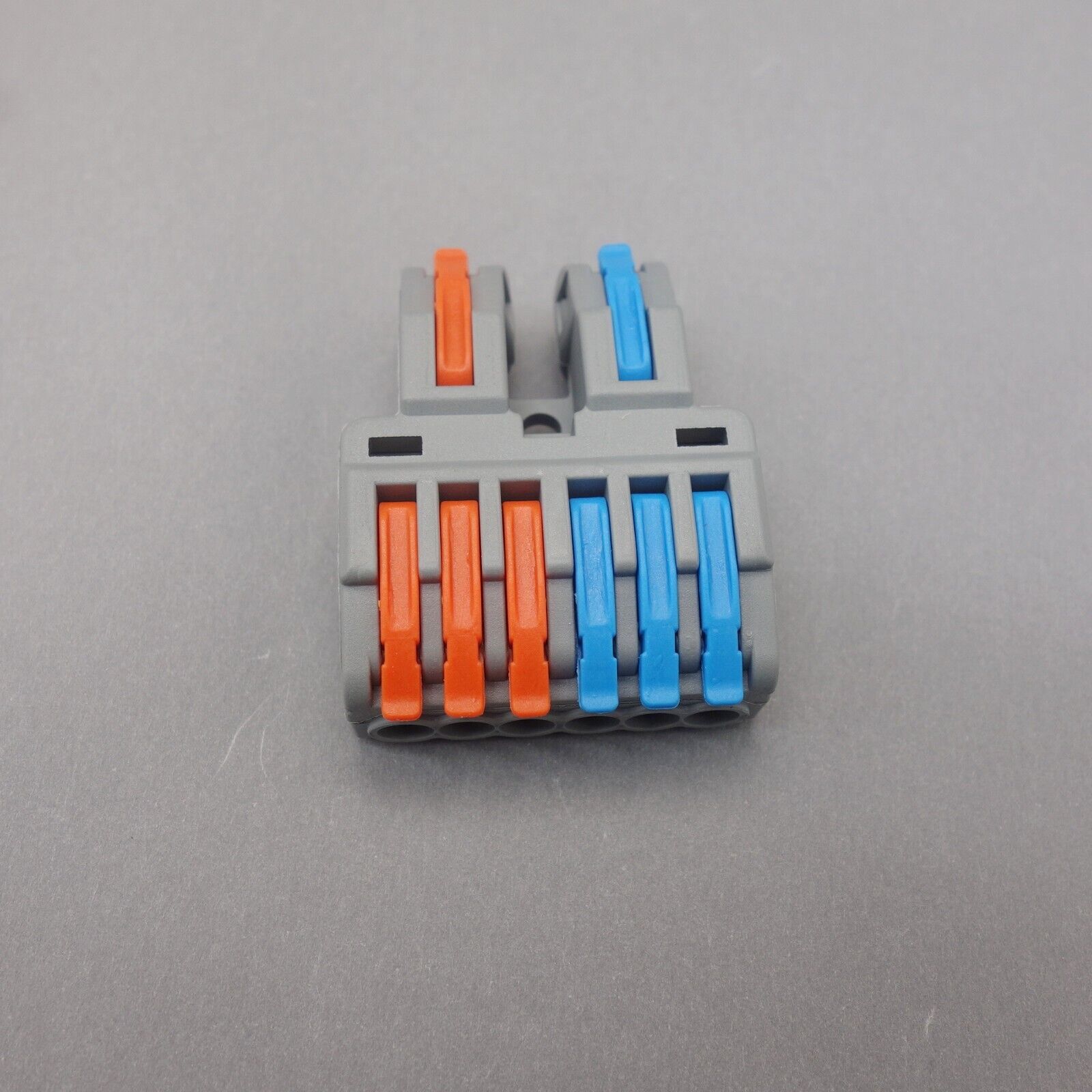

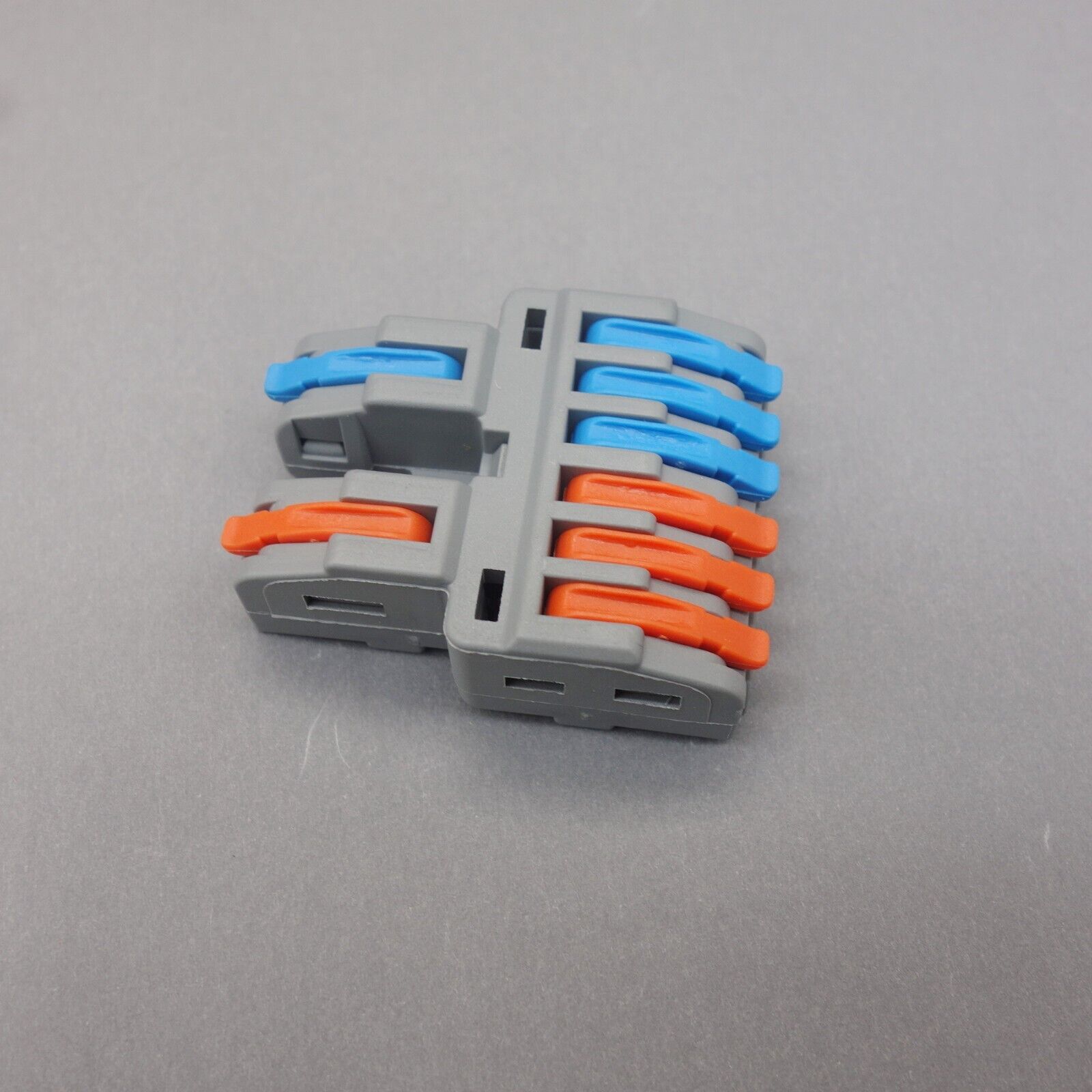

CMK-422-6 TWO TO 6 WAYS

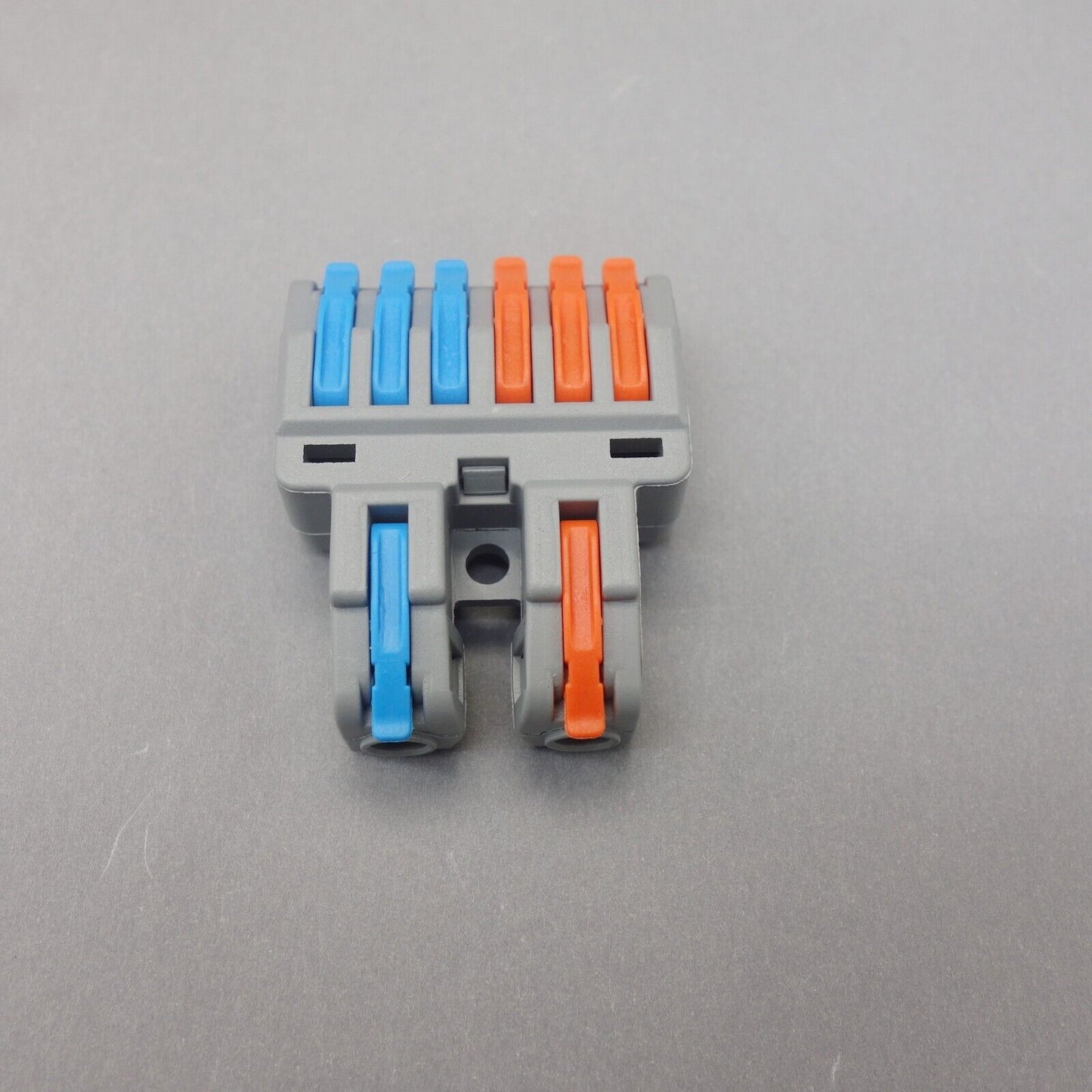

CMK-422-8 TWO TO 8 WAYS




Material of connectors shell: Polycarbonate PC
Material of actuating levers: Polyamide Pa66
Material of conductive parts: Thinned copper
Material of contact springs: AISI 301 stainless steel
 Rated voltage(V): 450V AC
Rated current(A): 32A
Connection capacity: 0.08-4mm2
Type of electric connection: Equipotential
Working temperature: -40°C to 105°C
Strip length: 11mm/0.43 Inch
