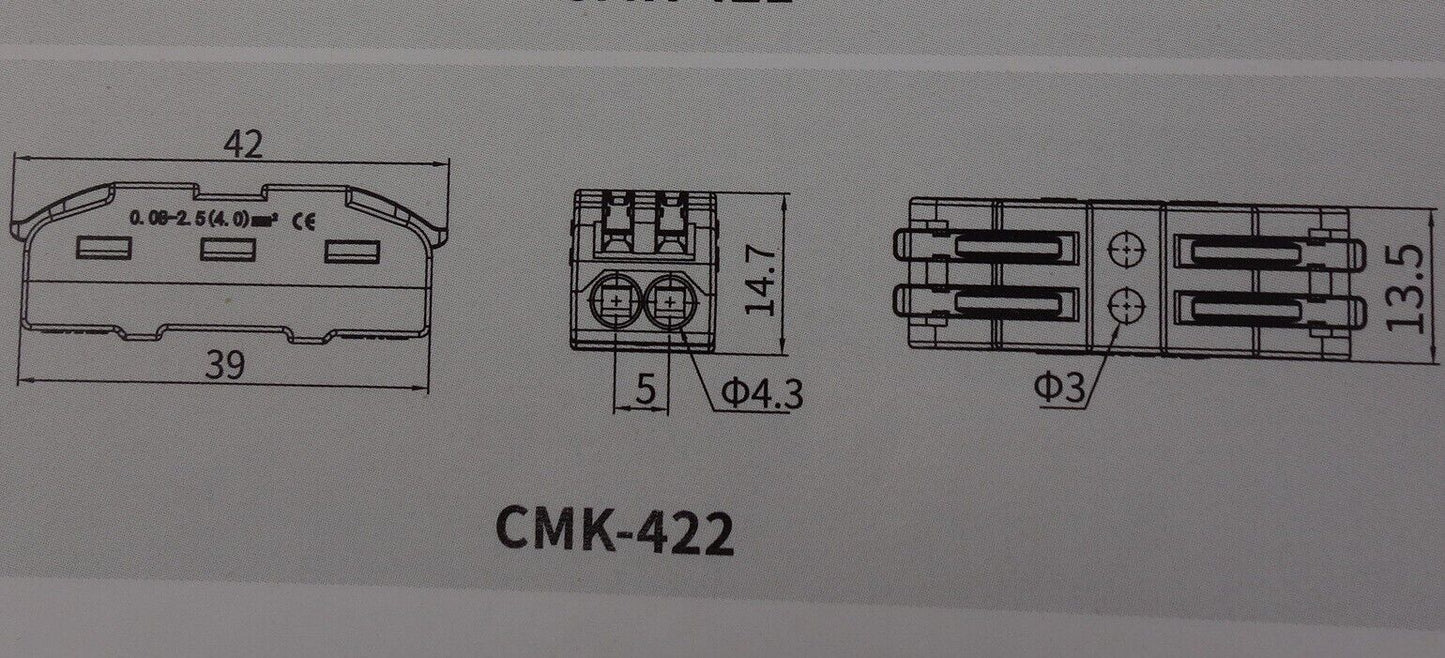

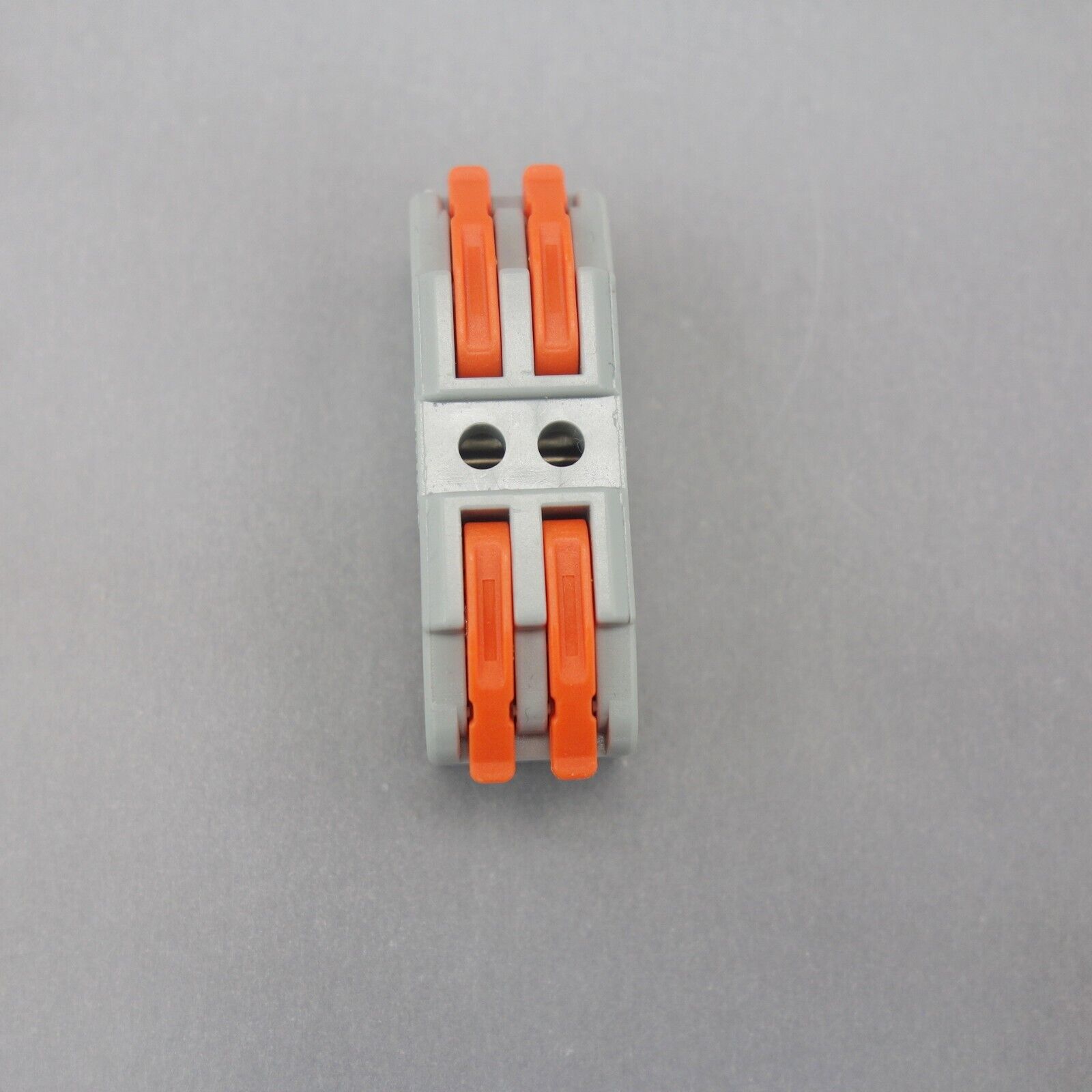

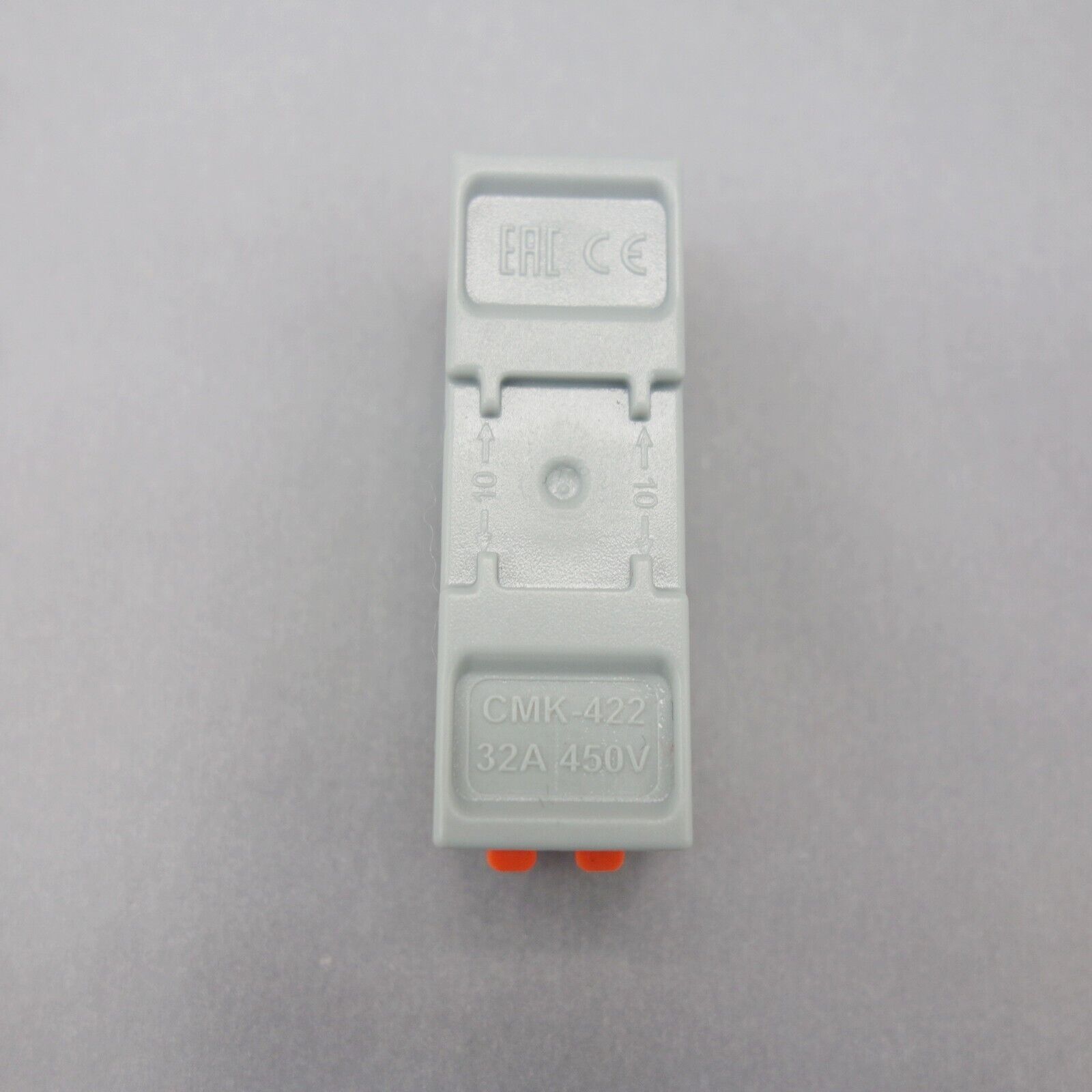

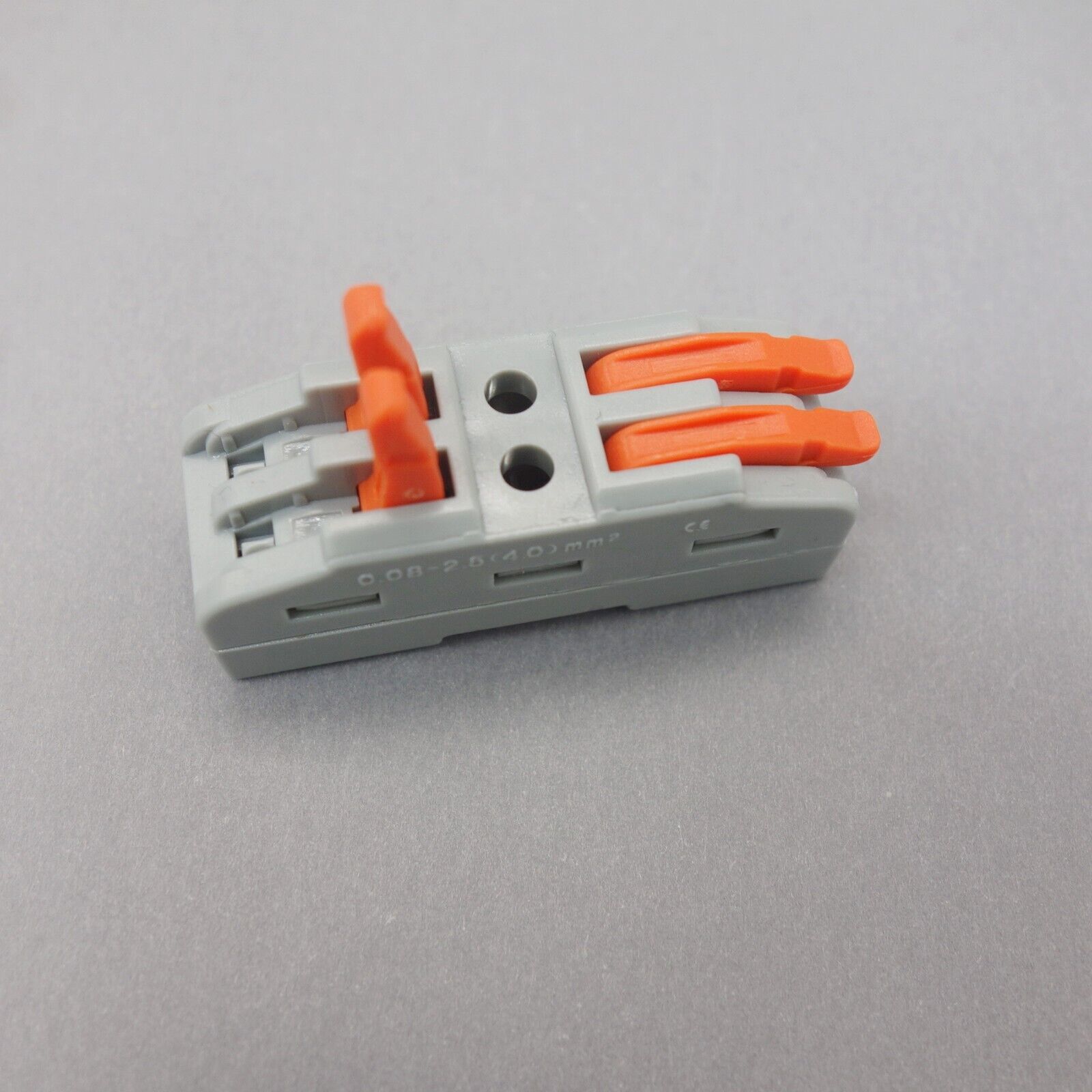

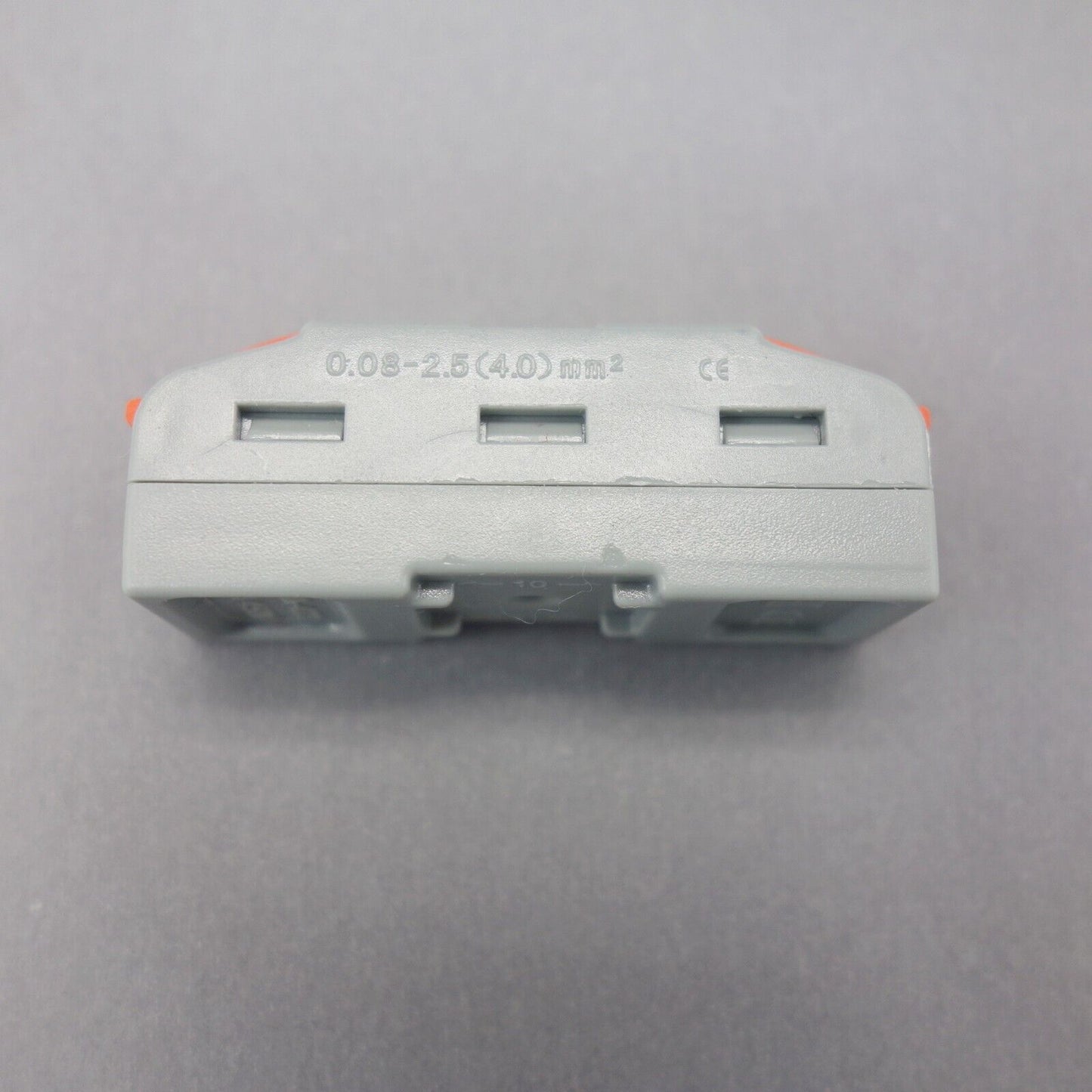

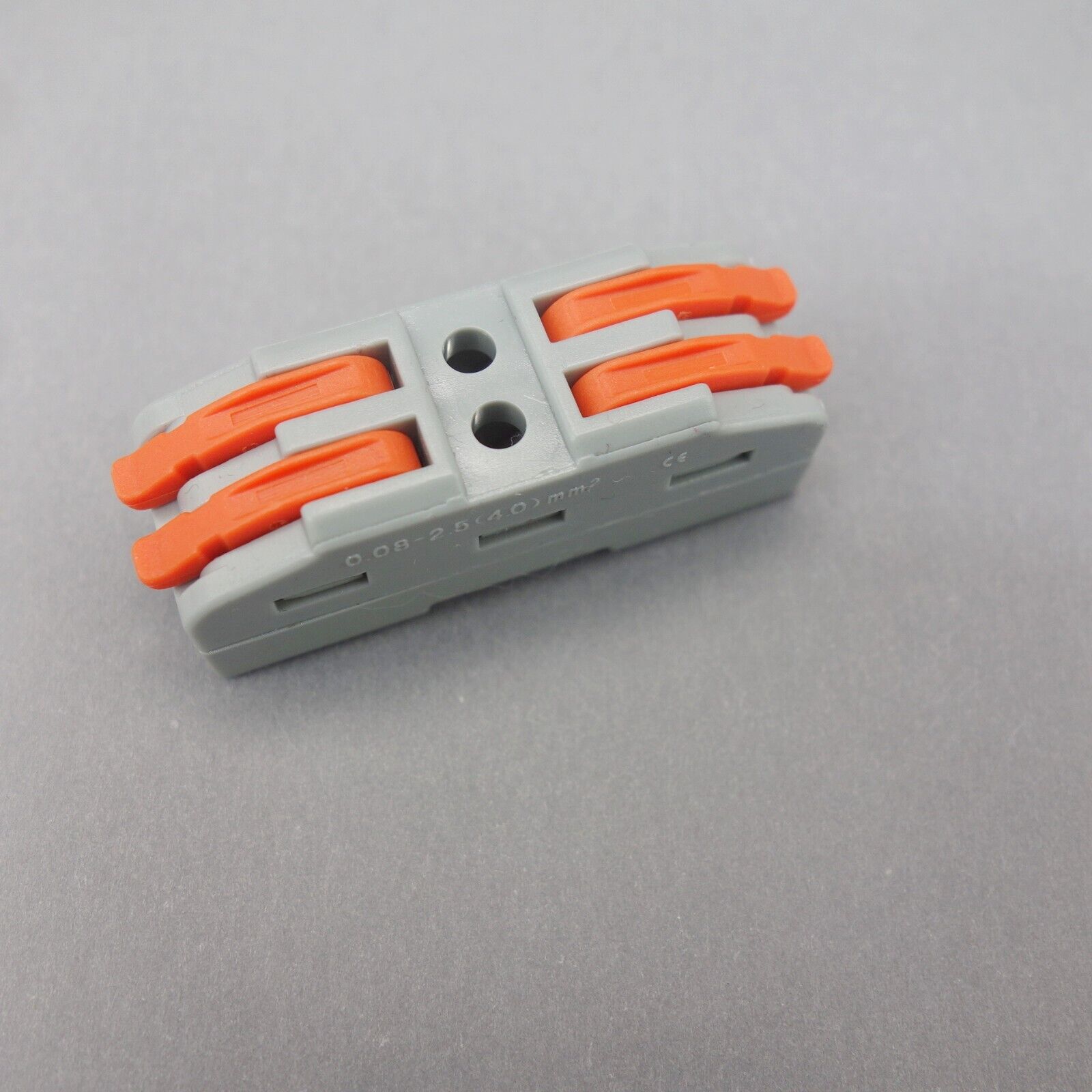

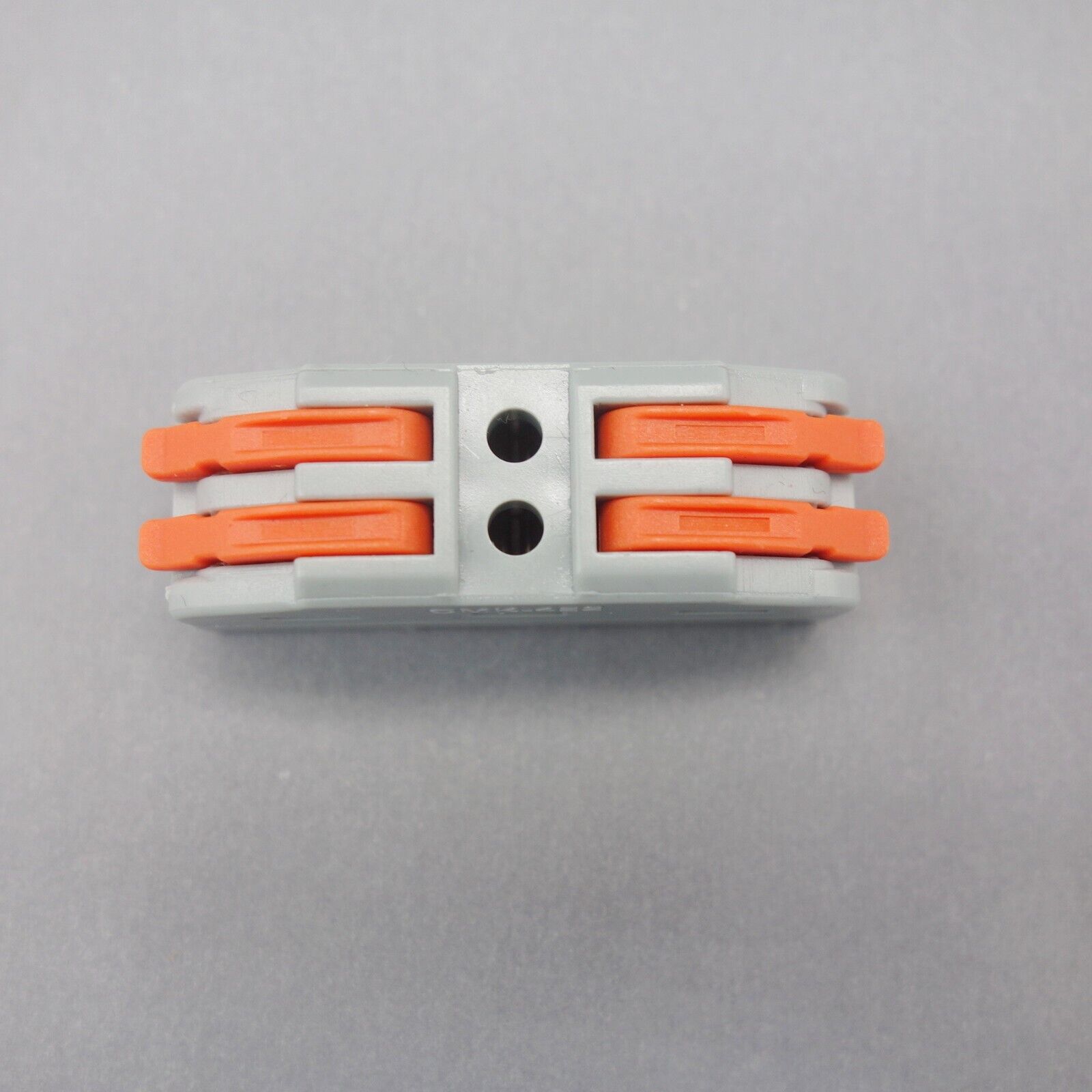

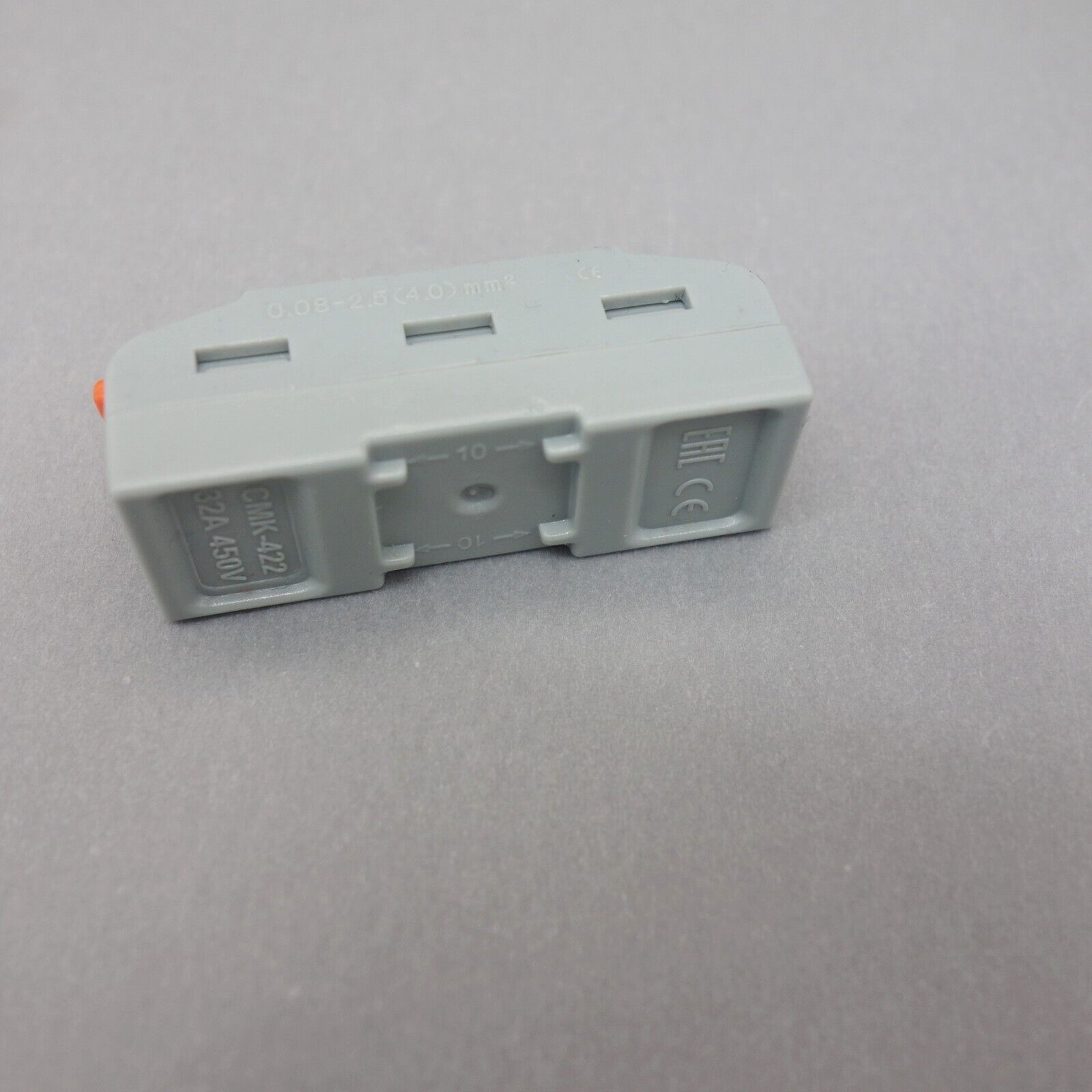

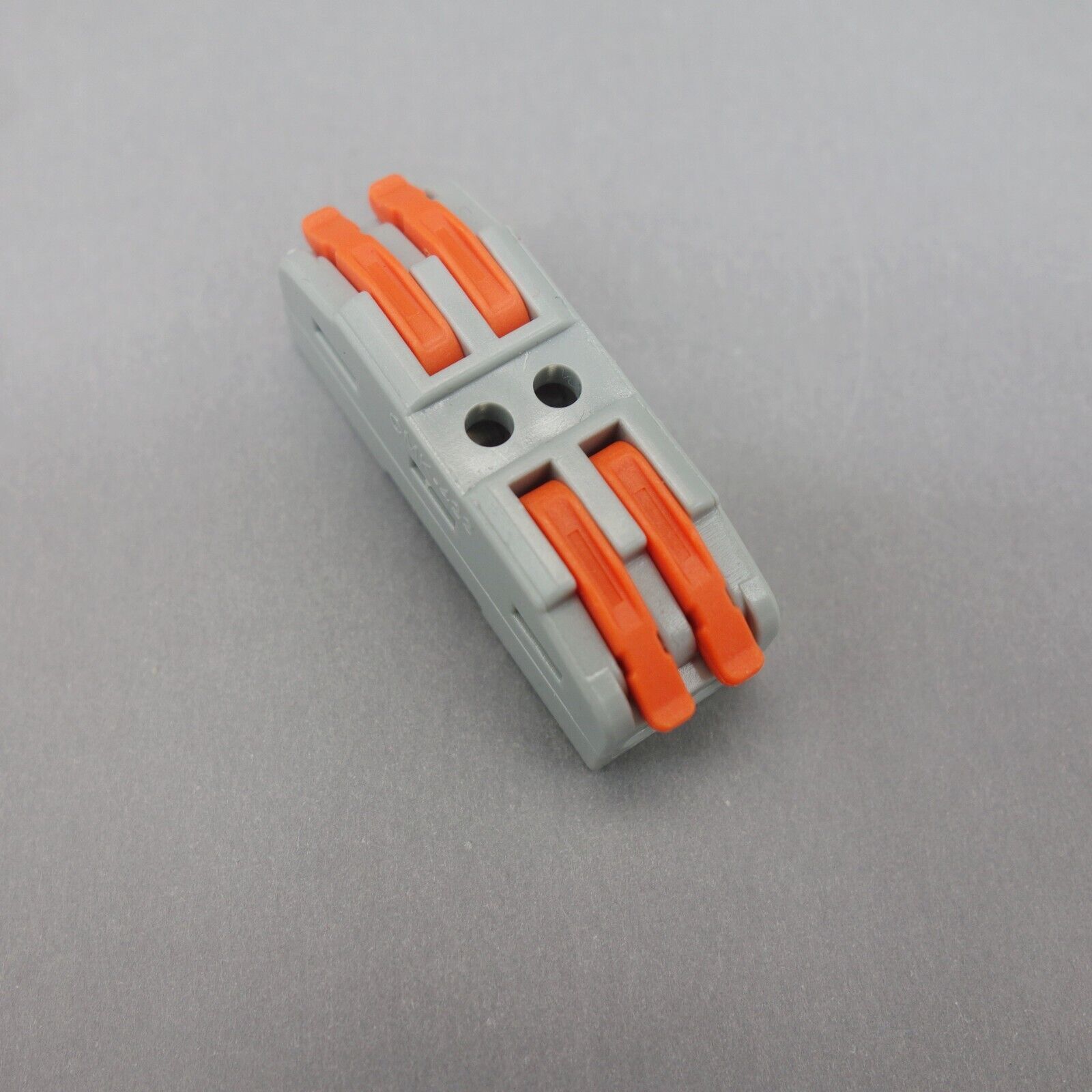

5PCS CMK-422 Terminal block Push in quick connector 32A 0.08-4MM2 11mm/0.43Inch

5PCS CMK-422 Terminal block Push in quick connector 32A 0.08-4MM2 11mm/0.43Inch

$3.08 USD
$3.08 USD
促销 售罄
5PCS NEW


CMK PUSH IN QUICK CONNECTOR


Terminal block


2 poles 4 Circuits




Connection Wire Flexible wire: 0.08-2.5mm2


Rigid wire:0.2-4mm2



Material of connectors shell: Polycarbonate PC
Material of actuating levers: Polyamide Pa66
Material of conductive parts: Thinned copper
Material of contact springs: AISI 301 stainless steel
 Rated voltage(V): 450V AC
Rated current(A): 32A
Connection capacity: 0.08-4mm2
Type of electric connection: Equipotential
Working temperature: -40°C to 105°C
Strip length: 11mm/0.43 Inch
