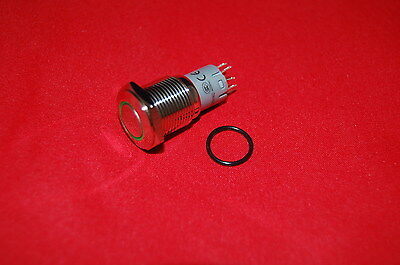

• 1pc Green 16mm 12V Led Angel Eye illuminate Momentary Metal Push Button
1 1

1pc Green 16mm 12V Led Angel Eye illuminate Momentary Metal Push Button

1pc Green 16mm 12V Led Angel Eye illuminate Momentary Metal Push Button

$3.18 USD
$3.18 USD
促销 售罄

                         1pc High quality Metal Push Button



                                      Green 16mm



                                       12V Momentary



                                    Led Angel Eye illuminate



  • Drill hole diameter: 16mm
  • Switch rating: 3A / 250VDC
  • Switch contacts: 1 NO, 1 NC
  • Material: Stainless steel
  • Contact resistance: < 50 mOhm
  • Insulation resistance: > 1000 Mohm
  • Temperature: -20 C to +55 C
  • Mechanical life: > 500,000
  • Electrical life: > 50,000
  • Panel thickness: 1-13mm
  • Operating pressure: 1.5 - 2.5 N
  • Operating stroke: 2mm
  • Lamp rated voltage: 12V


    • Please note: Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer’s responsibility.
