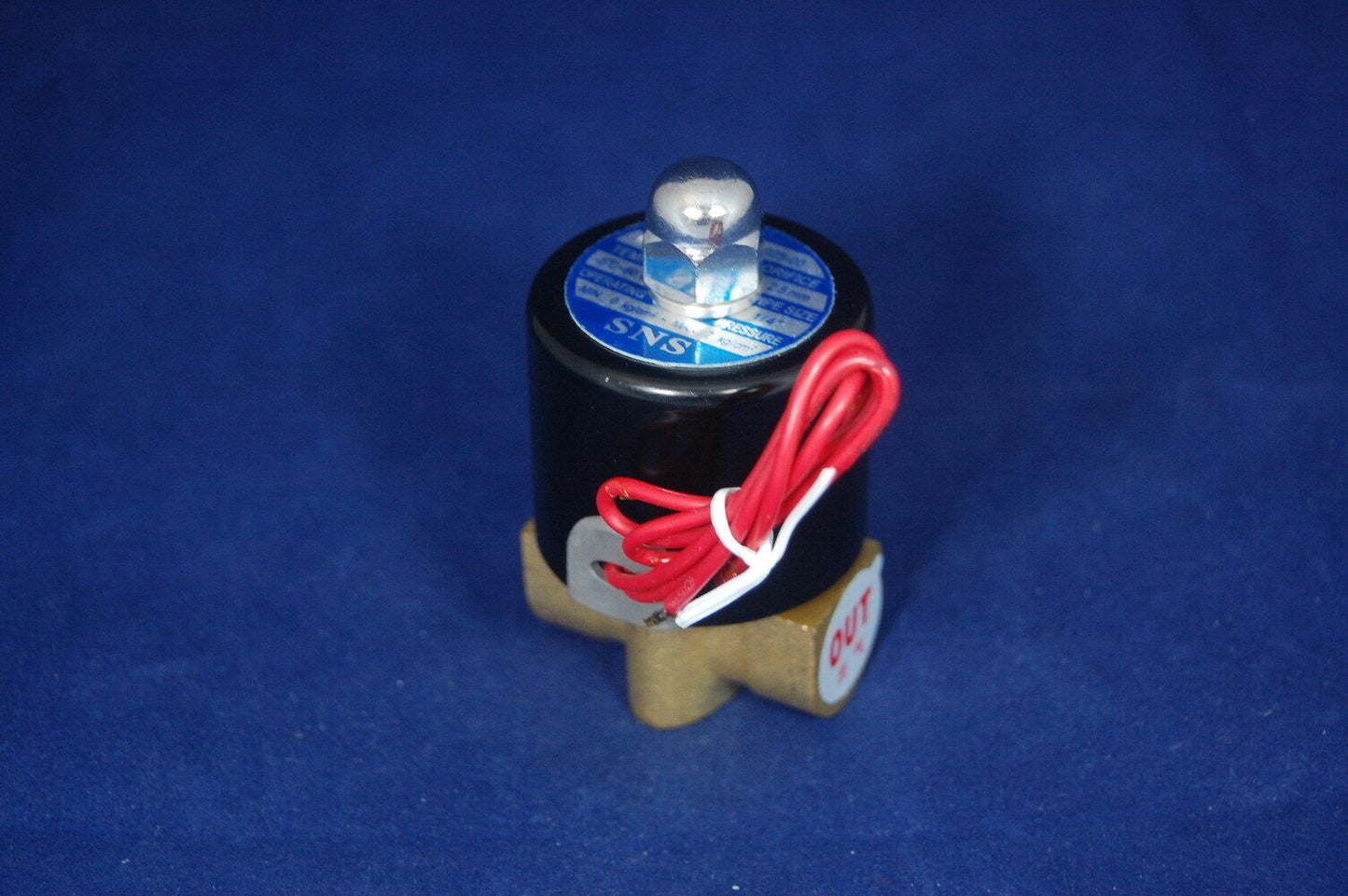

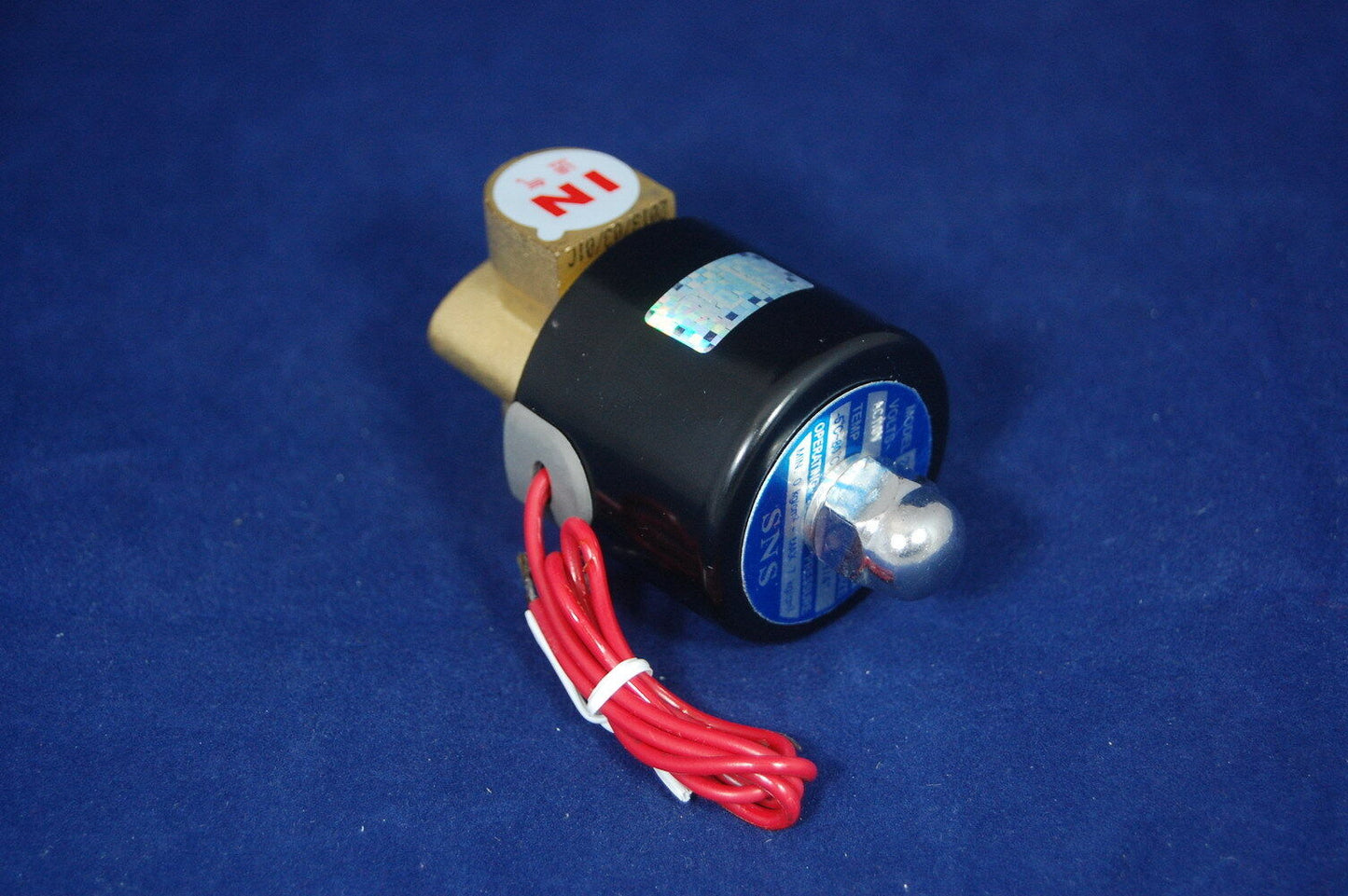

1/4" 2/2 Way Electric Solenoid Valve Coil 110V AC Air, Gas,Fuel brass body
1/4" 2/2 Way Electric Solenoid Valve Coil 110V AC Air, Gas,Fuel brass body
无法加载取货服务可用情况
High Quality One New in box
1/4" 2 Way
Electric Solenoid Valve
110-Volt Air, Gas,Fuel brass body
Valve Type: 2 Way Normally Closed (Valve opens with energized)
Service Media: Air, Gas, Liquid, Water
Max. Pressure: 0.7Mpa(7.0KGS/CM2)
Operation Model: Direct Acting
Flow Model: Uni-Directional
Flow Rate: 0.23Cv (Fluid Flow)
Response Time: Less than 20 ms
Body Material: Brass
Seal Material: NBR (Buna N)
Coil Certification: CE Certification
Coil Power: 15VA
Coil Class: F Class IP 65 (CE Certification)
Coil Duty: 100% ED (Continuous Duty)
Operating Temperature: -5 to 80 °C
Port Size: PT1/4"
Coil Voltage: 110V AC
Voltage Tolerances: DC: +10% –5% ; AC: +10% -15%
