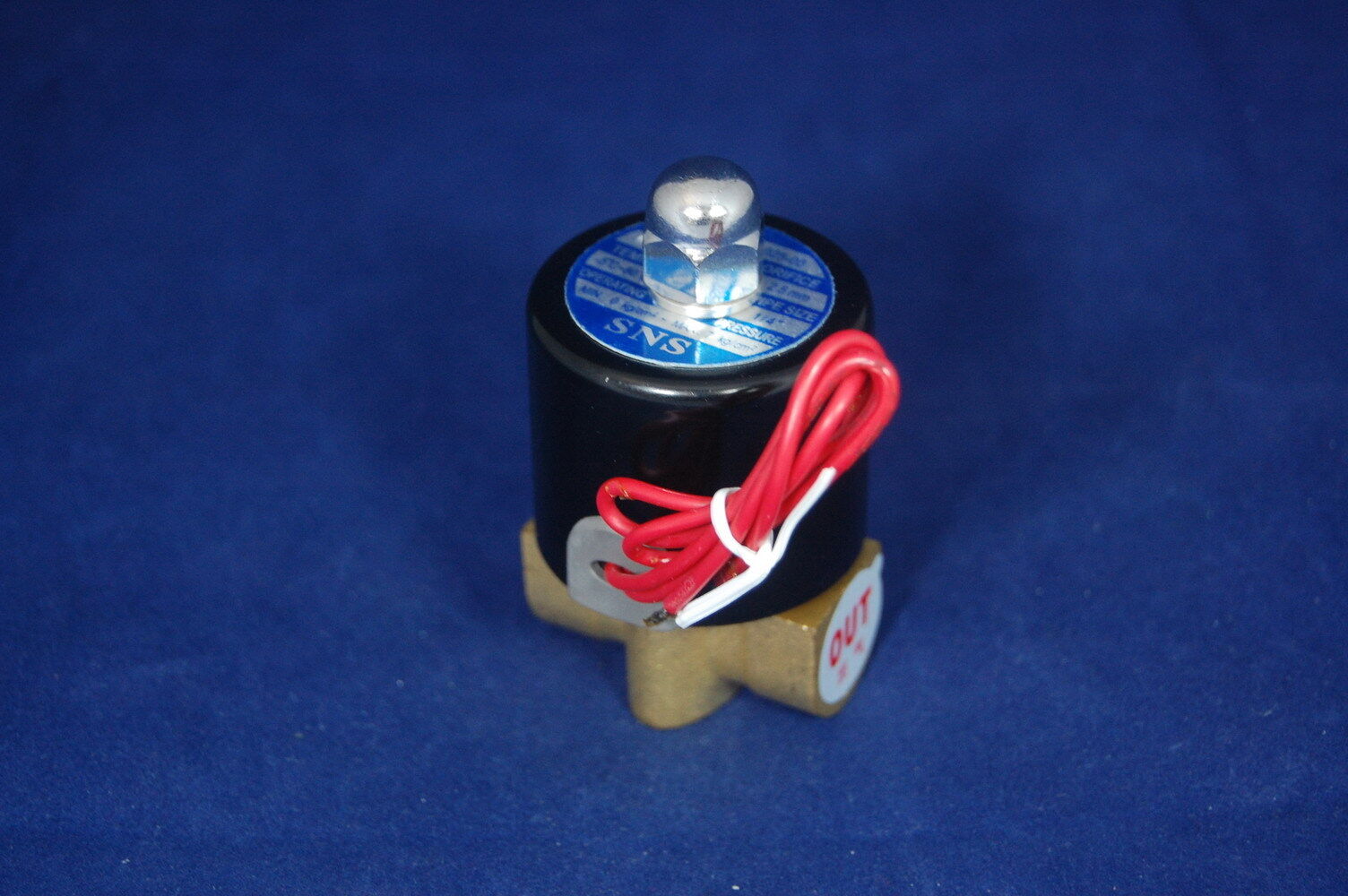

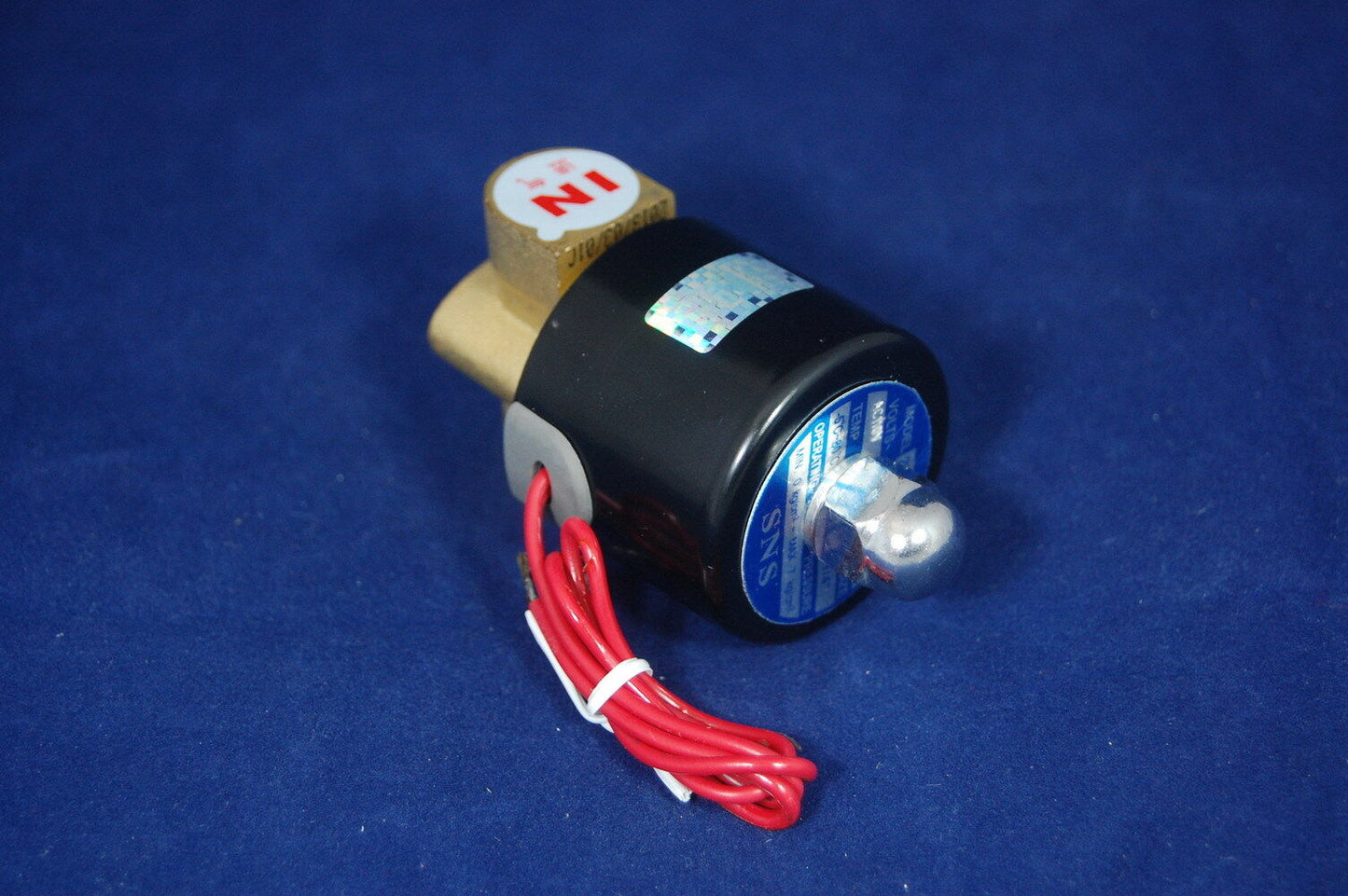

1/4" 2/2 Way Electric Solenoid Valve 12V DC-Volt Air, Gas,Fuel brass body

Valve Type: 2 Way Normally Closed (Valve opens with energized)

Service Media: Air, Gas, Liquid, Water

Operation Model: Direct Acting

Flow Model: Uni-Directional

Flow Rate: 0.23Cv (Fluid Flow)

Response Time: Less than 20 ms

Body Material: Brass

Seal Material: NBR (Buna N)

Coil Certification: CE Certification

Coil Power: 15VA

Coil Class: F Class IP 65 (CE Certification)

Coil Duty: 100% ED (Continuous Duty)

Operating Temperature: -5 to 80 °C

Port Size: PT1/4"

Coil Voltage: 12V DC

Voltage Tolerances: DC: +10% –5% ; AC: +10% -15%
